KeyInCode 5000 Series Surface Mount Rim Exit Bar
- Regular price
- $319.00
- Sale price
- $319.00
- Regular price
-
Some Dimensions - Exterior 7 5/8(H) x 2 3/4(W) x 2 3/4(D) in. / Interior 7 5/8(H) x 2 3/4(W) x 2 3/4(D) in.
Batteries - 4 AA / Battery Life - 1 year with typical use
Code Capacity - 3500
Code Length - 4-10 digits
Communication Standards - 2.4GHz Wi-Fi (IEEE 802.11 b/g/n)
Event Audit Trail - 1000 stored offline
Door Handing - Right, left, reversible
Functions - Classroom, storehouse
Access Types - PIN, ReadyPIN, Card, Mobile
Scheduling - Lock schedules User schedules, Holiday exceptions
Locking Device - Tubular latch, mortise latch, exit bar
Backset - 2 3/8" (60mm) & 2 3/4" (70mm)
Door Thickness - 1 3/8" -2 3/8" (35mm-60mm)
Ratings - ANSI/BHMA A156.25-2018, Grade 2, ANSI/BHMA A156.2-2017
Warranty - 1 year
Button label*Please note: This product is currently on back order and is expected to ship by mid-February.*
Overview:
Fits 25” to 36” doors

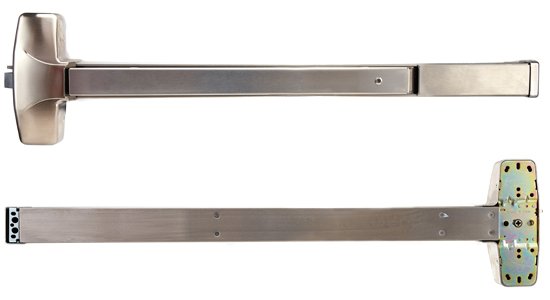

The KeyInCode 5000 Surface Mount Rim Exit Bar is constructed with heavy-gauge steel rail assemblies and a stamped steel chassis with multiple mounting holes for easy installation.Its ANSI A156.3, Grade 1 andUL Listed for Fire Exit Hardware 3 Hours.
It is a full-size chassis of non-ferrous cast and steel construction with a design allowing for through-bolt trim. It is non-handed for use on right—or left- hand openings.
The KIC-5000-EB can be used with various trim, including rim cylinder with pull handle, cylindrical keyed lever, escutcheon keyed lever, escutcheon keyed thumb-latch, door pull, passage, or dummy ( Trim needs to be ordered separately). KIC 5560 Wi-Fi Smart Exit Trim is recommended for a complete RemoteLock Access Control Solution. https://shop.remotelock.com/products/keyincode-5560-smart-wi-fi-trim-lock-for-exit-bars
Included:
Surface Mount Rim Exit Bar
Complete installation kit
Latch-bolt strike, shims, fasteners, and strike plates.
Mounting Templates
Installation Guide
Outside Trim not Included
