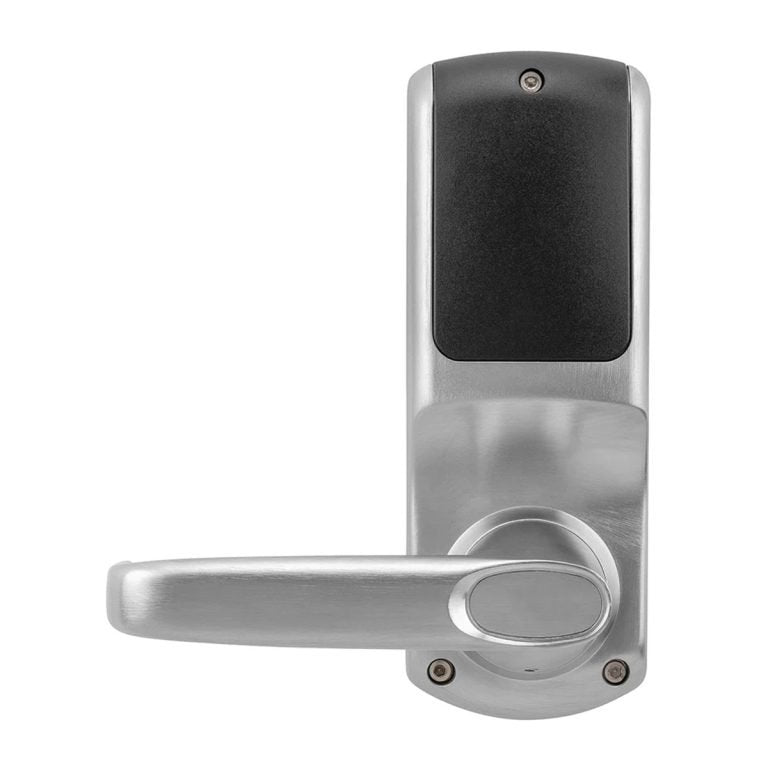

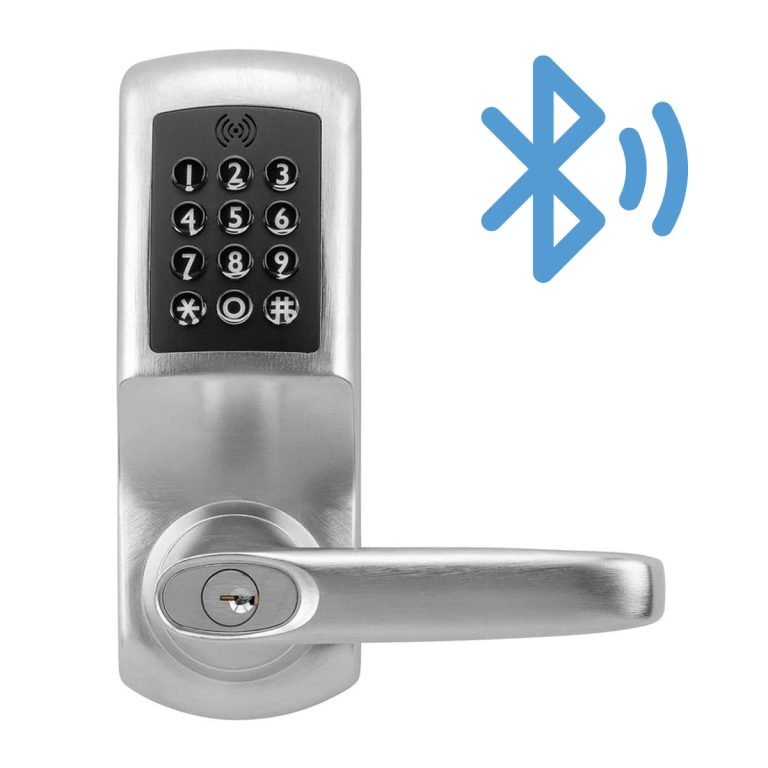

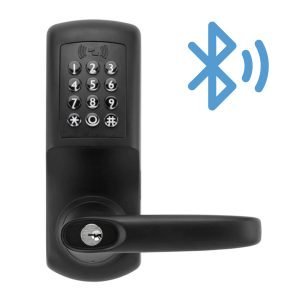

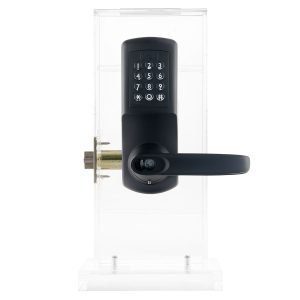

KeyInCode 5510 KWB Smart Wi-Fi Tubular Latch Lock
KeyInCode 5510 KWB Smart Wi-Fi Tubular Latch Lock
KeyInCode 5510 KWB Smart Wi-Fi Tubular Latch Lock
KeyInCode 5510 KWB Smart Wi-Fi Tubular Latch Lock

KeyInCode

KeyInCode 5510 KWB Smart Wi-Fi Tubular Latch Lock

Model # KIC-5510-KWB-626

$675.00
finish: Brushed Chrome

In stock, ready to ship

Shipping

Ships to US addresses only. For UK/EU purchases visit smartlock.shop.

Compatibility

Works with the RemoteLock access control platform. See all compatible devices.

Overview

SHIPPING: KIC-5500 SERIES LOCKS IN BRUSHED CHROME ARE OUT OF STOCK UNTIL FURTHER NOTICE. Matte Black locks are available to ship within 1-2 days. Limited quantity available.

KeyInCode 5510 KWB Smart Wi-Fi Tubular Latch Lock is a commercial-grade solution designed for large enterprises, offices, hotels, multifamily properties, and other commercial establishments.

Equipped with built-in Wi-Fi, KeyInCode locks connect directly to the internet via existing networks, enabling property owners to manage access remotely. This affordable solution extends access control deeper into buildings, reaching areas beyond traditional wired exterior doors.

The KIC 5510 Lever Lock with tubular latch is managed through RemoteLock’s intuitive cloud-based software and mobile app, offering seamless wireless configuration. Users can adjust settings, manage access credentials, view activity history, receive alerts, and more.

Designed for maximum flexibility, KeyInCode locks support a variety of credential types, including PIN codes, temporary guest PINs, ReadyPINs (algorithm-generated), and MIFARE smart cards. BLE is only used for commissioning the lock.

 Setup & Commissioning

 Commissioning is completed through the KIC Mobile App (iOS & Android)

  • Install and power on the lock.

  • Pair and commission in the KIC app

  • Connect KIC account to RemoteLock through the KIC KoreLine integration tile

  • Manage all access, permissions & logs in RemoteLock

  • The workflow mirrors other smart lock platforms:

  • OEM app first → then connect to RemoteLock cloud.



Features:



  • Brand: KeyInCode

  • Device Type: Tubular Latch

  • Tubular Latch Door Prep: Standard ANSI A115.2 (160 and 161 cutouts)

  • Handing: Field Reversible

  • Backset: 2⅜” (60mm) & 2¾” (70mm)

  • Door Thickness: 1 3/8" -2 3/8" (35mm-60mm)

  • Dimensions:

  • Exterior 7 ⅝ (H) x 2 ¾ (W) x 2 ¾ (D) in.

  • Interior 7 ⅝ (H) x 2 ¾ (W) x 2 ¾ (D) in.

  • Code Capacity: 3500

  • Event Audit Trail: 1000 stored offline

  • Code Length: 4-10 digits

  • Connectivity: 2.4GHz Wi-Fi (IEEE 802.11 b/g/n)

  • Access Types: PIN, ReadyPIN, MiFare Classic Credentials & Key override.

  • Rating: ANSI/BHMA A156.25-2018, Grade 2, ANSI/BHMA A156.2-2017, UL 3hr Fire

  • Finish: 626 (Brushed Chrome) and 676 (Matt Black)

  • Batteries: 4 X AA

  • Warranty: 1 Year Warranty by Manufacturer



Included:

  • Outside & Inside Lever Lock

  • Tubular Latch

  • Mounting Hardware

  • Templates

  • 2 Keys

  • Installation Guide

  • Batteries not included
