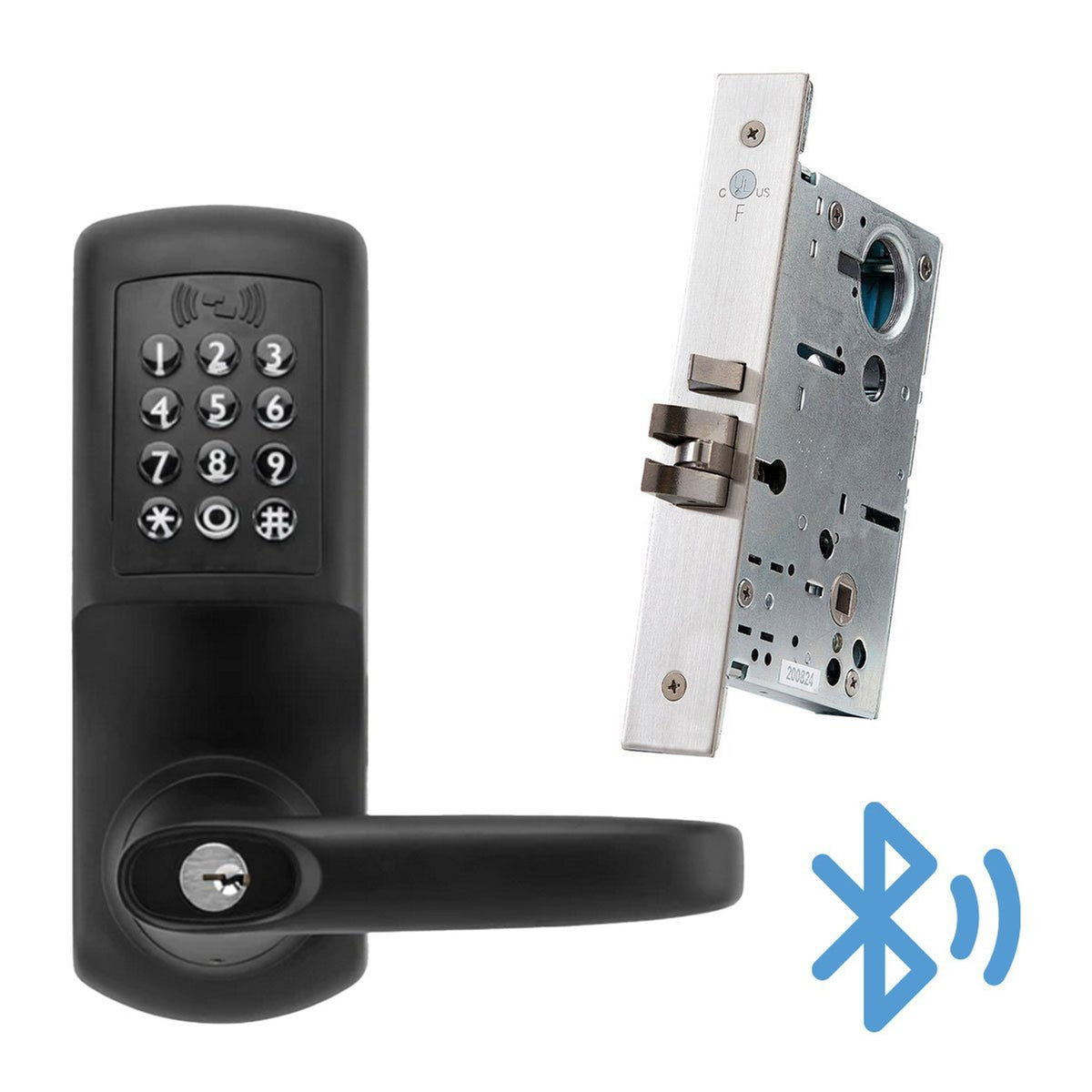

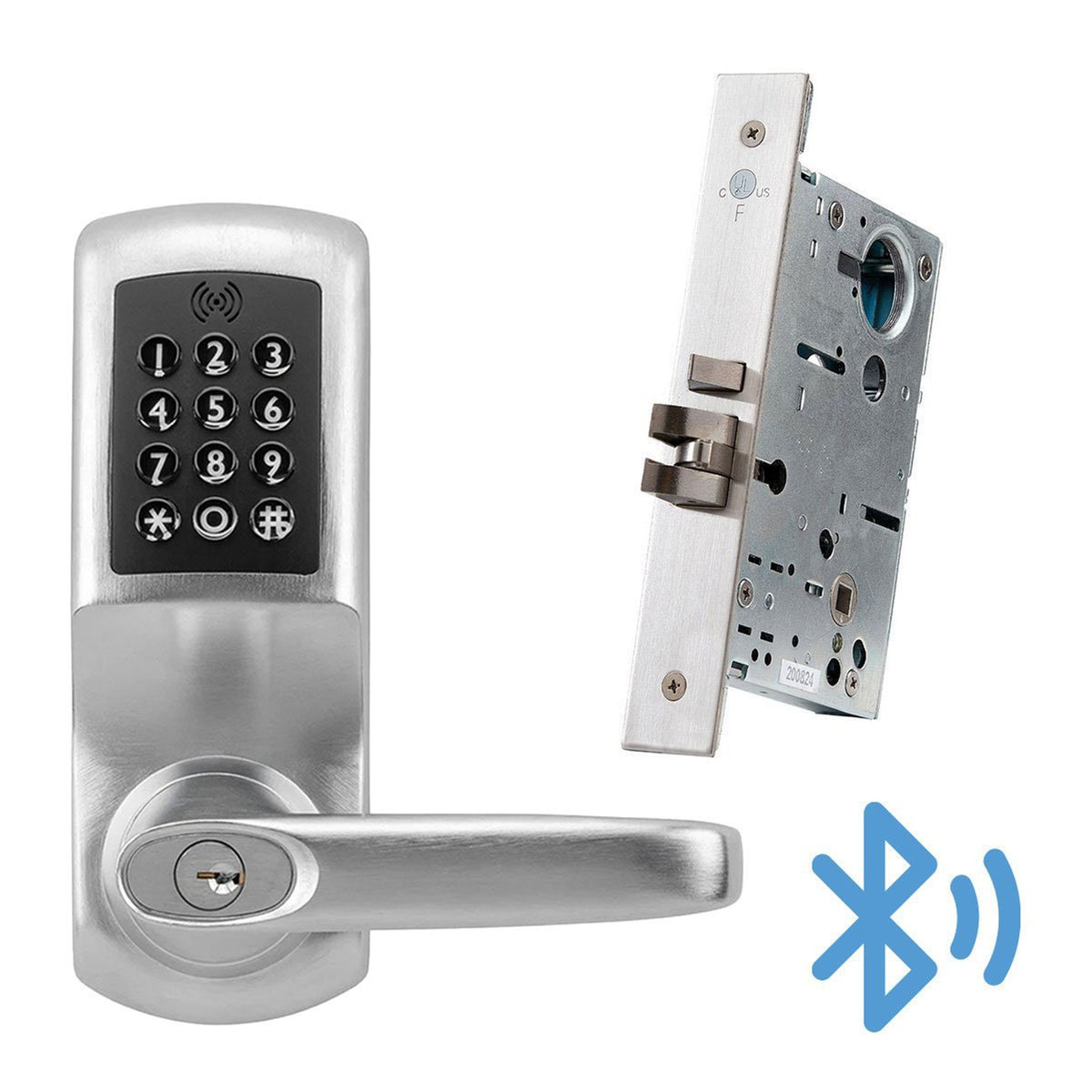

KeyInCode 5550 Smart Wi-Fi Mortise Lock

SHIPPING: Orders typically ship in 1-2 business days.

The KeyInCode Smart Wi-Fi Keypad Lever Mortise Lock is a commercial-grade solution tailored for large enterprises, offices, hotels, multifamily, and other commercial properties.

Equipped with built-in Wi-Fi, KeyInCode locks connect directly to the internet via existing networks, enabling property owners to manage access remotely. This affordable solution extends access control deeper into buildings, reaching areas beyond traditional wired exterior doors.

The KIC 5550 Lever Lock with mortise lock body is managed through RemoteLock’s intuitive cloud-based software and mobile app, offering seamless wireless configuration. Users can adjust settings, manage access credentials, view activity history, receive alerts, and more.

Designed for maximum flexibility, KeyInCode locks support a variety of credential types, including PIN codes, temporary guest PINs, ReadyPINs (algorithm-generated), and MIFARE smart cards.

Features:

• Brand: KeyInCode

• Device Type: Mortise Mechanism

• Mortise Door Prep: Standard ANSI 115.1 Mortise prep (86 cutout), modified with added throughbolt holes.

• Handing: Field Reversible

• Door Thickness: 1 3/8" -2 3/8" (35mm-60mm)

• Dimensions:

• Exterior 7 ⅝ (H) x 2 ¾ (W) x 2 ¾ (D) in.

• Interior 7 ⅝ (H) x 2 ¾ (W) x 2 ¾ (D) in.

• Batteries: 4 AA

• Code Capacity: 3500

• Code Length: 4-10 digits

• Connectivity: 2.4GHz Wi-Fi (IEEE 802.11 b/g/n)

• Event Audit Trail: 1000 stored offline

• Access Types: PIN, ReadyPIN, MiFare Classic Credentials & Key override.

• Rating: AN:SI/BHMA A156.25-2018, Grade 2, ANSI/BHMA A156.2-2017

• Finish: 626 (Brushed Chrome) and 676 (Matt Black)

• Warranty: 1 Year Warranty by Manufacturer

Included:

• Outside & Inside Lever Lock

• ANSI Mortise

• Mounting Hardware

• Templates

• 2 Keys

• Installation Guide

• Batteries not included
