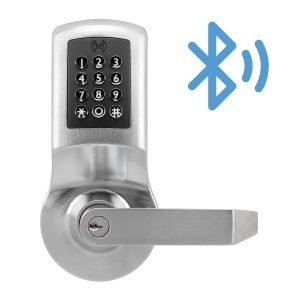

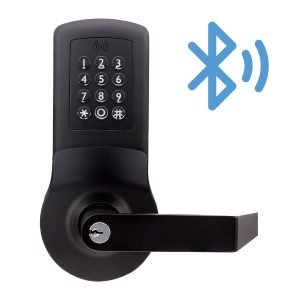

KeyInCode 6580 KWB Wi-Fi Enabled Lockset

$899.00
$899.00

SHIPPING DELAY: KIC-6580-KWB-626 (Silver) and KIC-6580-KWB-676 (Black) orders will ship after June 9th, 2026.

ANSI Grade 1, BLE & Wi-Fi Enabled Lockset

The KIC6580 KWB Wi-Fi-enabled smart lock is a heavy-duty, commercial-grade smart lock designed for large enterprises, offices, and commercial properties.

This lock utilizes built-in Wi-Fi to connect directly to the internet via existing Wi-Fi networks, allowing property owners to manage access remotely and affordably extend access control deeper into buildings beyond traditional wired exterior doors.

The KIC 6580 Lever Lock with cylindrical latch is managed through RemoteLock’s intuitive cloud-based software and mobile app, offering seamless wireless configuration. Users can adjust settings, manage access credentials, view activity history, receive alerts, and more.

Designed for maximum flexibility, KeyInCode locks support a variety of credential types, including PIN codes, temporary guest PINs, ReadyPINs (algorithm-generated), and MIFARE smart cards. BLE is only used for commissioning the lock.

Setup & Commissioning

Commissioning is completed through the KIC Mobile App (iOS & Android)

  • Install and power on the lock.

  • Pair and commission in the KIC app

  • Connect KIC account to RemoteLock through the KIC KoreLine integration tile

  • Manage all access, permissions & logs in RemoteLock

  • The workflow mirrors other smart lock platforms:

  • OEM app first → then connect to RemoteLock cloud.



Features:

  • Brand: KeyInCode

  • Locking Devices: Cylindrical retractor

  • Exterior Dimensions: 8 (H) x 3¾ (W) x 3 (D) in.

  • Interior Dimensions: 8 (H) x 3¾ (W) x 3 (D) in.

  • Latch Door Prep: Standard ANSI A115.2 (160 and 161 cutouts)

  • Strike: 2¾” (for 1⅜” door) and 4⅞” (for 1¾” door) supplied

  • Construction: Zinc Alloy, suitable for indoor & outdoor use

  • Backset: 2 ¾ in. (70mm)

  • Door Thickness: 1⅜ – 1⅞” (35mm – 48mm)

  • Door Handing: Non-handed, field reversible

  • Dimensions:

  • Exterior 7 ⅝ (H) x 2 ¾ (W) x 2 ¾ (D) in.

  • Interior 7 ⅝ (H) x 2 ¾ (W) x 2 ¾ (D) in.

  • Code Capacity: 3500

  • Event Audit Trail: 1000 stored offline

  • Code Length: 4-10 digits

  • Connectivity: 2.4GHz Wi-Fi (IEEE 802.11 b/g/n)

  • Access Types: PIN, ReadyPIN, MiFare Classic Credentials & Key override.

  • Rating: ANSI/BHMA A156.25-2018, Grade 1, ANSI/BHMA A156.2-2017

  • Finish: 626 (Brushed Chrome) and 676 (Matt Black)

  • Batteries: 4 X AA

  • Warranty: 1 Year Warranty by Manufacturer



Included:

  • Outside & Inside Lever Lock

  • Cylindrical Latch

  • Mounting Hardware

  • Templates

  • 2 Keys

  • Installation Guide

  • Batteries not included
