KIC Crusader Series Grade 1 Cylindrical Lever

Regular price
$839.00
Sale price
$839.00
Regular price

Shipping: Orders typically ship in 2-3 weeks.

SKU: KIC-CRU-GR1-MKB

Description:

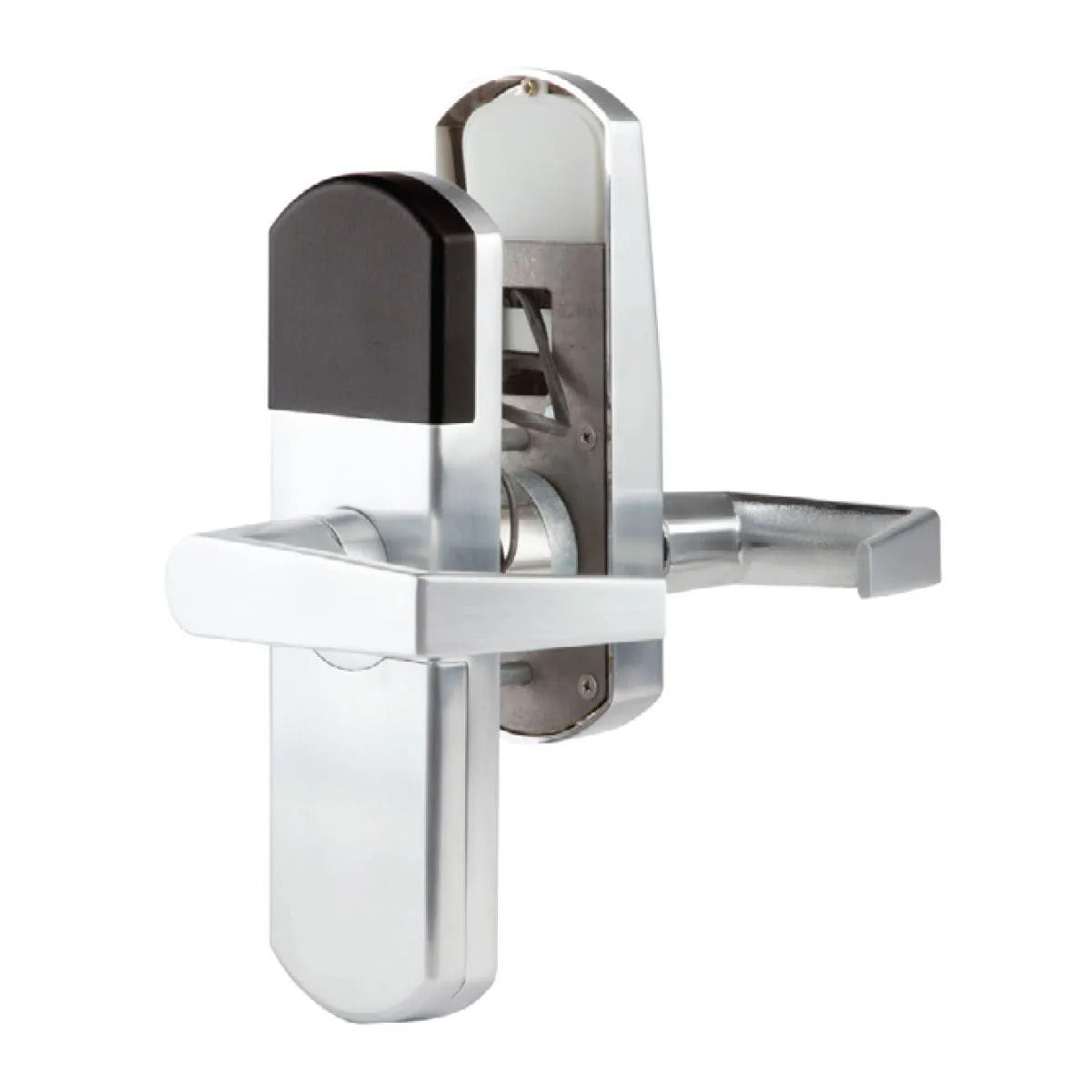

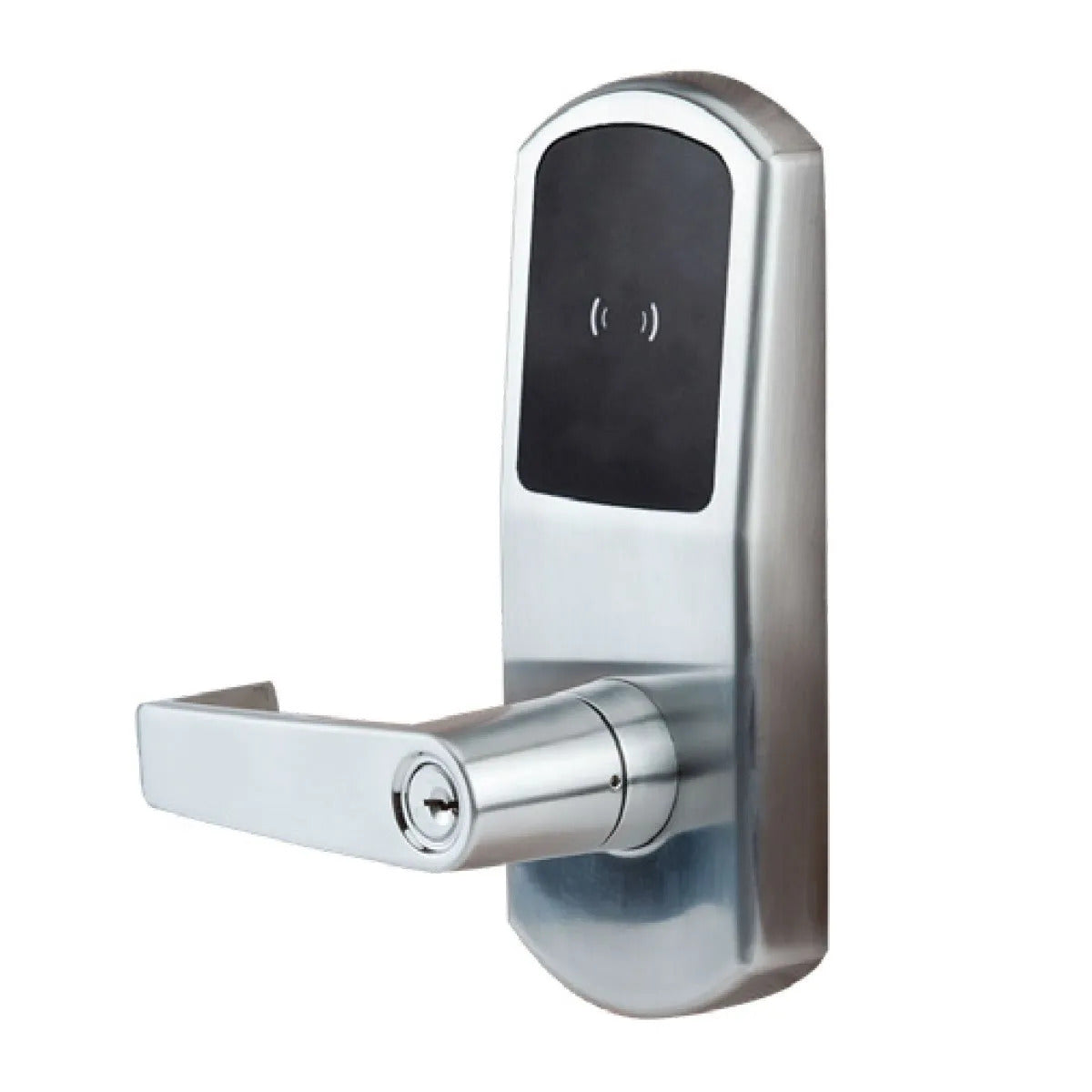

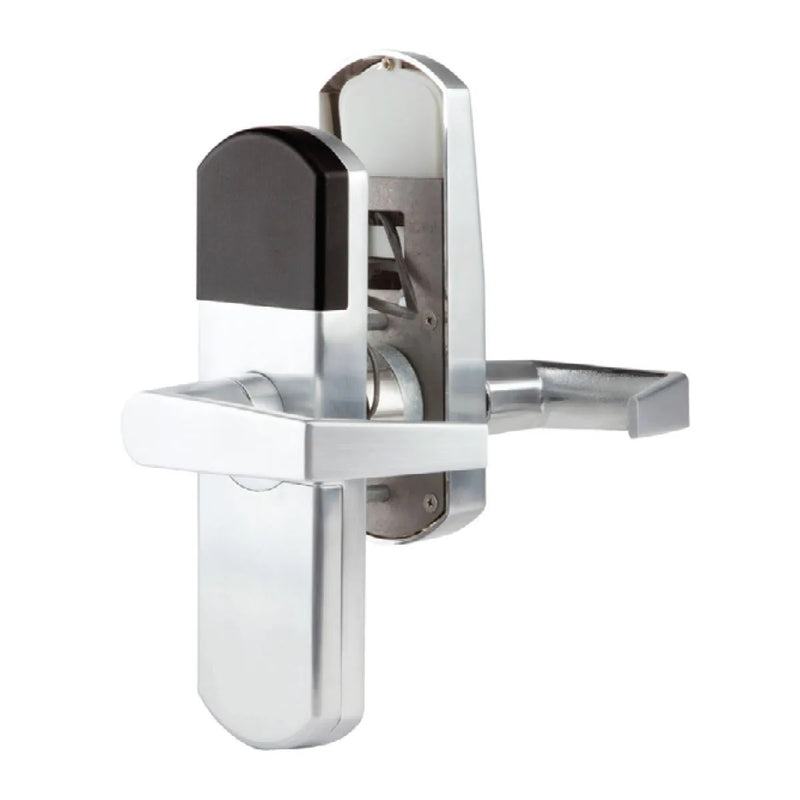

The KIC Crusader Series Grade 1 Cylindrical Lockset is designed for demanding commercial applications where security, durability, and reliability are essential. Certified to ANSI Grade 1 standards, this heavy-duty electronic cylindrical lockset is engineered for high-traffic environments and provides a dependable access control solution for offices, education facilities, healthcare settings, multi-residential developments, and other commercial properties.

Featuring integrated Wi-Fi and Bluetooth connectivity, the lockset works seamlessly with the RL platform, enabling remote management of users, schedules, credentials, and audit activity from virtually anywhere. Supporting mobile credentials, PIN codes, RFID cards, fobs, and mechanical key override, it delivers flexible access control while simplifying day-to-day security administration.

Designed for straightforward installation using standard 161 door preparation, the KIC Crusader Series Grade 1 Cylindrical Lockset is suitable for both new installations and retrofit projects. Combining commercial-grade construction with intelligent access control technology, it delivers long-term performance, enhanced security, and simplified facility management.

 Lock Specifications:

  • Installation: Fits standard 161 door prep, 2 additional drilled holes

  • Bore Diameter: 2 1/8”

  • Backset: 2 3/4”

  • Door Thickness: 1 3/4” to 2 1/4”

  • Door Strike: ASA (1 1/4” x 4 7/8”) default, T-Strike optional

  • Handing: Pre-handed (LH or RH), field reversible

Credentials

  • PIN Code, Card/Fob (Mifare 13.56 MHz), Mobile Credentials, Key Backup

Keyways

  • Conventional, Keyed Alike, SFIC, Restricted, High Security, UL437

Access & Scheduling

  • Up to 4,000 events stored offline

  • Up to 365 days depending on selected RL plan

  • Up to 28 device schedules

  • Up to 40 user access schedules

  • Up to 20 exception schedules

Connectivity

  • Bluetooth Low Energy (BLE) v4.2 / v5.2

  • 2.4 GHz Wi-Fi (802.11 b/g/n)

Security

  • AES 256-bit encryption

  • TLS 1.2

Power

  • 4 x AA batteries

  • Up to 2+ year battery life

Operating Conditions

  • -20°C to 65°C

  • 0–95% humidity (non-condensing)

Certifications

  • UL/CUL 45-minute fire rating

  • ANSI/BHMA Grade 1 cylindrical lock

  • ADA compliant

  • FCC Part 15
