KIC2500 Narrow Stile MiFare Card Reader 6.2

KeyInCode

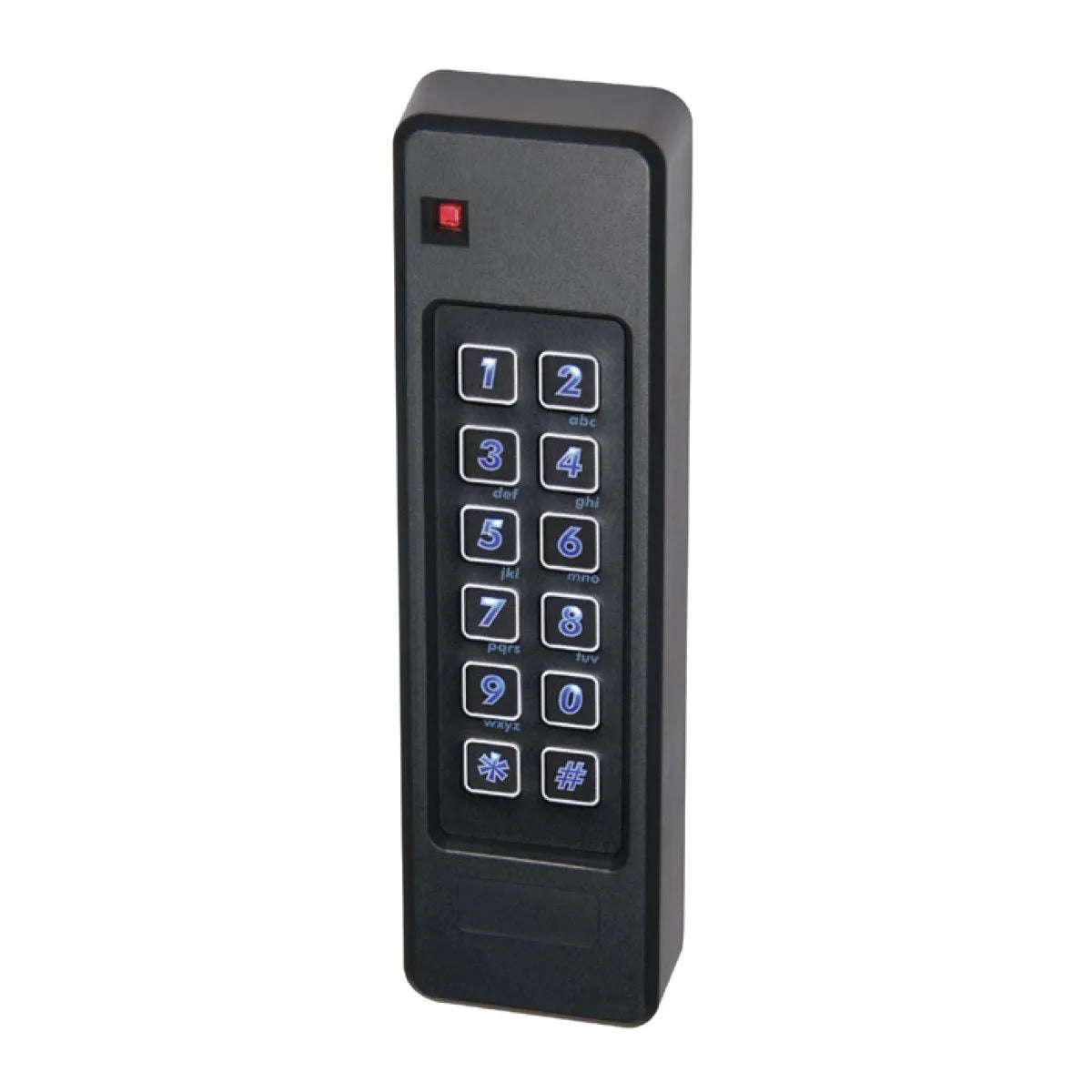

KIC2500 Narrow Stile MiFare Card Reader 6.2

Model # KIC-2500-RNS

$399.00
finish: Black

Shipping

Ships to US addresses only. For UK/EU purchases visit smartlock.shop.

Compatibility

Works with the RemoteLock access control platform. See all compatible devices.

Overview

Shipping: Orders typically ship in 2-3 weeks.

SKU: KIC-2500-RNS

Description:

The KIC2500 Narrow Stile MIFARE Card Reader 6.2 is designed for access control installations where a narrow stile mounting solution is required. Intended for commercial and institutional environments, it provides reliable credential reading when integrated with compatible KIC2500 systems.

Its narrow profile makes it suitable for aluminum and narrow stile door frames while maintaining consistent performance in controlled entry applications.

Technical Specifications

  • Supported Technologies: Contactless smartcard and Bluetooth Low Energy (BLE)

  • Mounting: Fits narrow stile (mullion) surfaces including metal door/window frames and flat surfaces

  • Dimensions: 1.78″ W × 6.1″ H × 0.91″ D (45 mm × 155 mm × 23 mm)

  • Voltage Range: +8 to 14 VDC

  • Current Draw: 60 mA typical, 250 mA peak @ 12 VDC

  • Read Range: Physical Credentials: Up to 2″ (51 mm), Mobile Credentials: Up to 15 ft (4.6 m)

  • LED Indicators: Four-state (Red, Green, Amber, Off)

  • Audio: Built-in beeper

  • Environmental Ratings: IP67 rated (dust and water-resistant)

  • Operating Temperature: –31°F to 140°F (–35°C to +60°C)

  • Operating Humidity: 0% to 90% RH

  • Color: Black (snap-on cover included)

  • Certifications: FCC, IC, CE, UL294, ULC 60839-11-13

  • Cabling Requirements: 24 AWG minimum, multi-conductor stranded, foil shielded
