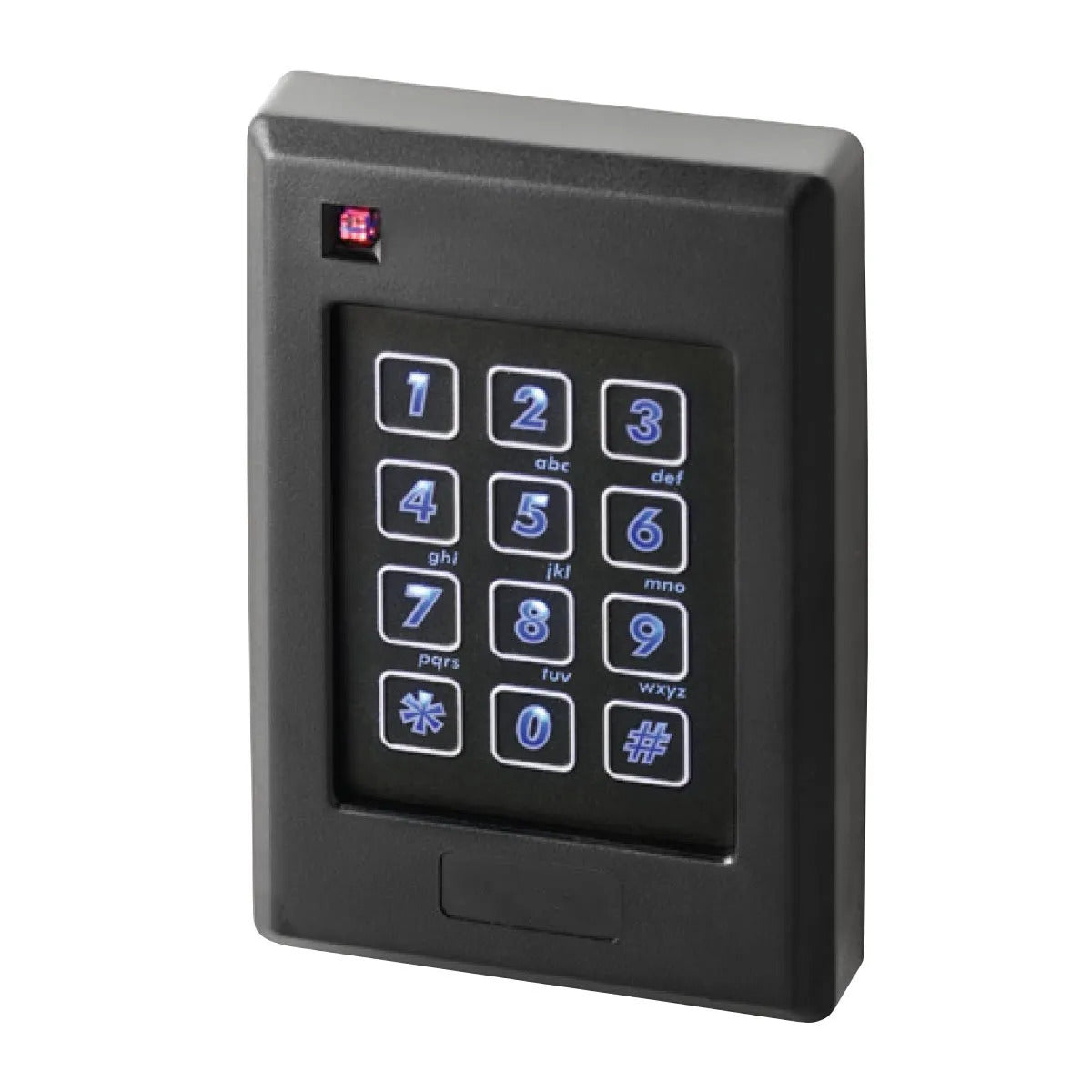

KIC2500 Single Gang Box MiFare Card Reader 6.4

$399.00
$399.00

Shipping: Orders typically ship in 2-3 weeks.

SKU:  KIC-2500-RSG

Description:

The KIC2500 Single Gang Box MIFARE Card Reader 6.4 is designed to provide reliable credential reading for compatible access control installations. Housed in a single gang box format, it is suitable for commercial and institutional environments where controlled entry is required.

This reader integrates with supported KIC2500 access control systems and is intended for applications requiring consistent performance and secure credential recognition.

Technical Specifications

  • Supported Technologies: Contactless smartcard and Bluetooth Low Energy (BLE)

  • Mounting: Fits standard single-gang wall box and flat surfaces

  • Dimensions: 3.0″ W × 4.6″ H × 0.75″ D (76 mm × 117 mm × 19 mm)

  • Voltage Range: +8 to 14 VDC

  • Current Draw: 60 mA typical, 250 mA peak @ 12 VDC

  • Read Range: Physical Credentials: Up to 2″ (51 mm), Mobile Credentials: Up to 15 ft (4.6 m)

  • LED Indicators: Four-state (Red, Green, Amber, Off)

  • Audio: Built-in beeper

  • Environmental Ratings: IP67 rated (dust and water-resistant)

  • Operating Temperature: –31°F to 140°F (–35°C to +60°C)

  • Operating Humidity: 0% to 90% RH

  • Color: Black (snap-on cover included)

  • Certifications: FCC, IC, CE, UL294, ULC 60839-11-13

  • Cabling Requirements: 24 AWG minimum, multi-conductor stranded, foil shielded
