Protection That’s Also Convenient

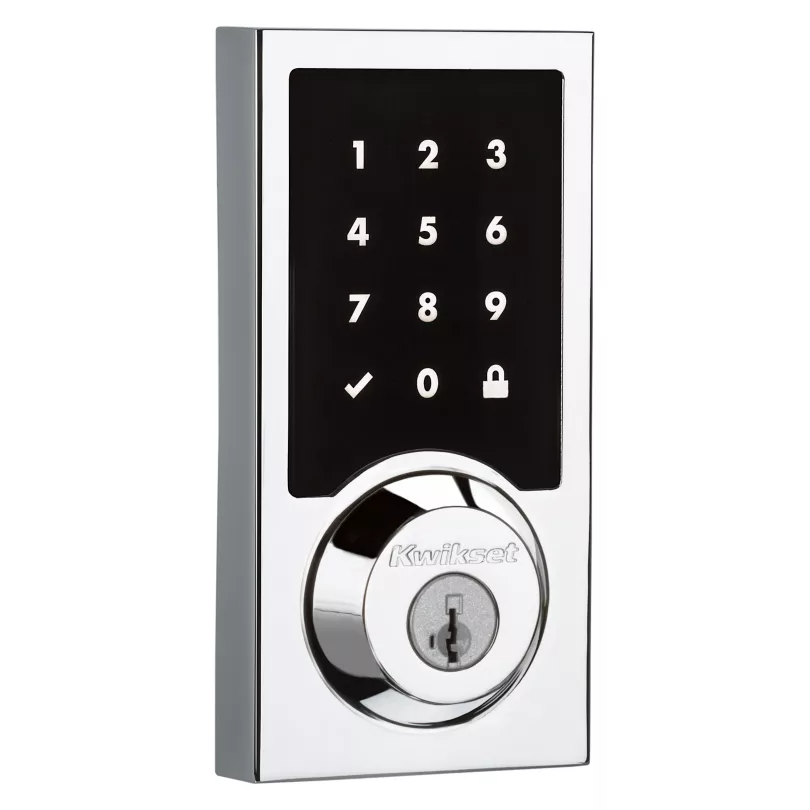

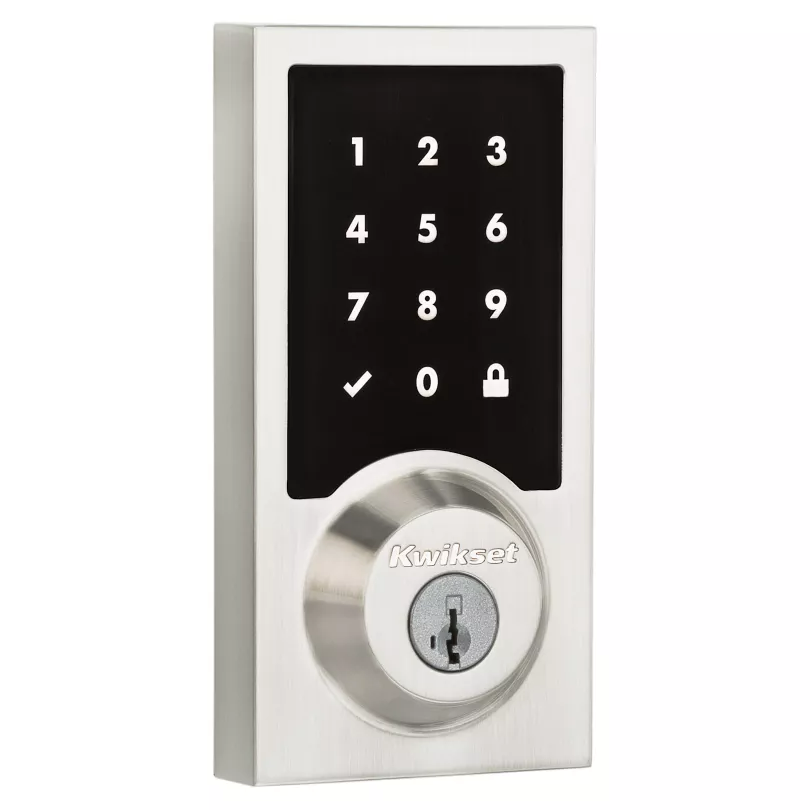

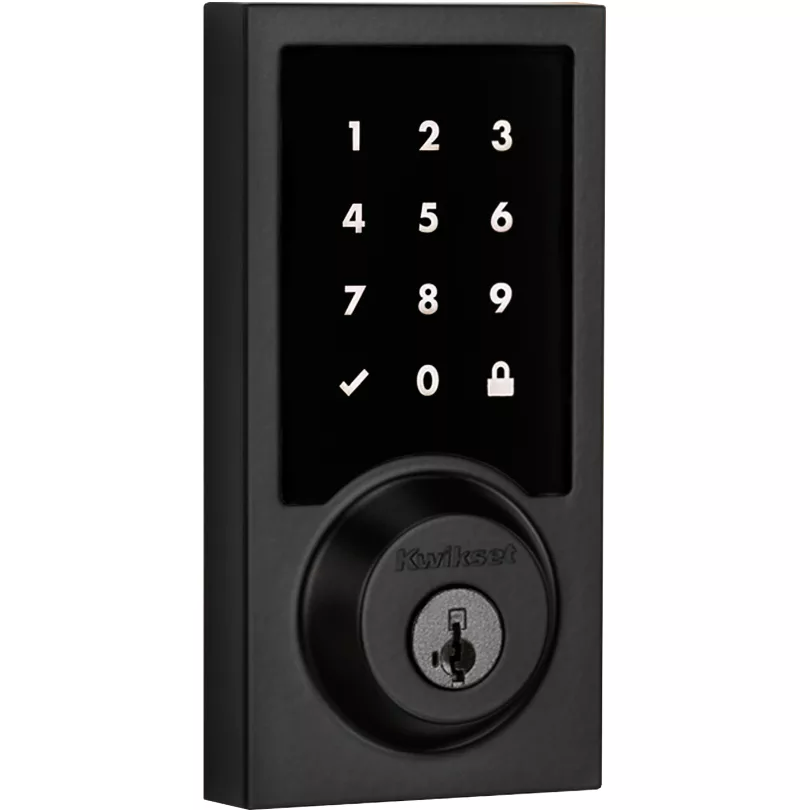

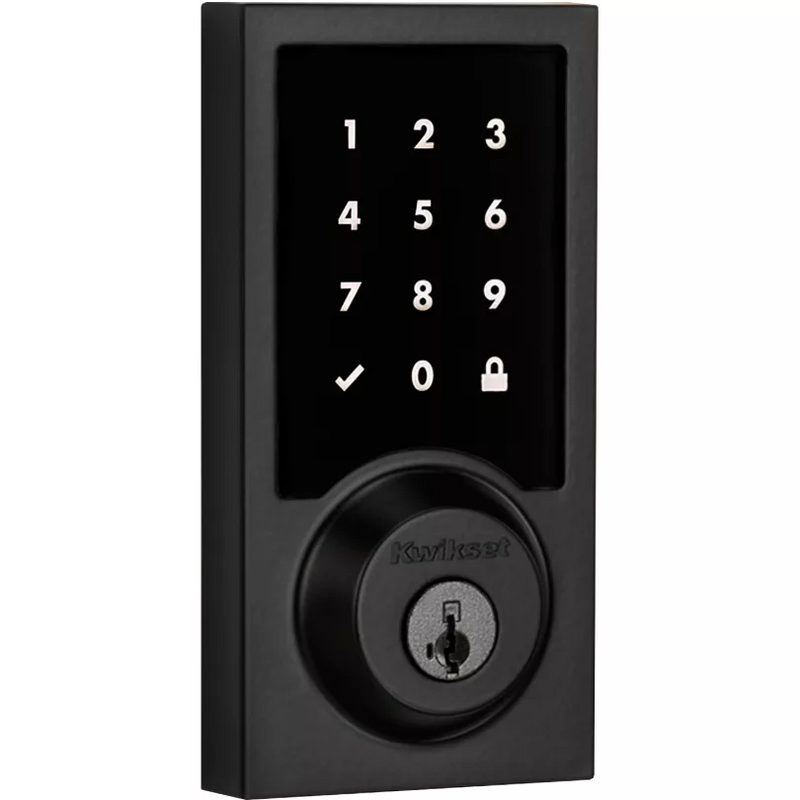

The SmartCode 916 Home Connect Z-wave features a capacitive touchscreen with Kwikset’s patented SecureScreen™ technology to prevent code detection from fingerprints on the touchscreen.

It's the uncomplicated way to get smart lock security and convenience using a SmartThings Smart Home Hub . Operate, manage, and monitor “Guest Access” and “User Access “ with your smartphone using the RemoteLock Software from anywhere with an Internet connection.

*Compatible smart home hub sold separately*

Specs:

Single Cylinder Deadbolt TouchScreen

Door Prep: 2 1 ⁄8 " diameter face hole & 1” diameter latch hole

Backset: Adjustable 2 3⁄8 " or 2 3⁄4 "

Door Thickness: 1 3⁄8 " - 2 1 ⁄8” automatic adjustment

Cylinder: SmartKey® Re-key Technology

Faceplates: 1 " x 2 1 ⁄4 " round corner standard

Strikes: Round corner strike 2 3⁄4 " x 2 1 ⁄8 "

Latch: Round corner adjustable 2 3⁄8 " x 2 3⁄4 "

Bolt: 1 " throw, steel deadbolt

Door Handing: Reversible

Finishes: Satin Nickel & Venetian Bronze

Wireless Protocol: Z-Wave

User Codes: 30

Battery: 4 AA batteries

Security:

BHMA Grade 2 certified

20 Minute fire rating - UL-certified

Full 128-bit encryption security

Featuring Smartkey Security™

Warranty:

Lifetime mechanical and finish warranty

1 year electronic warranty

Included:

Lock

2 Keys

Mounting Plate

Mounting Hardware

4 AA Batteries

Installation Guide & Manual
