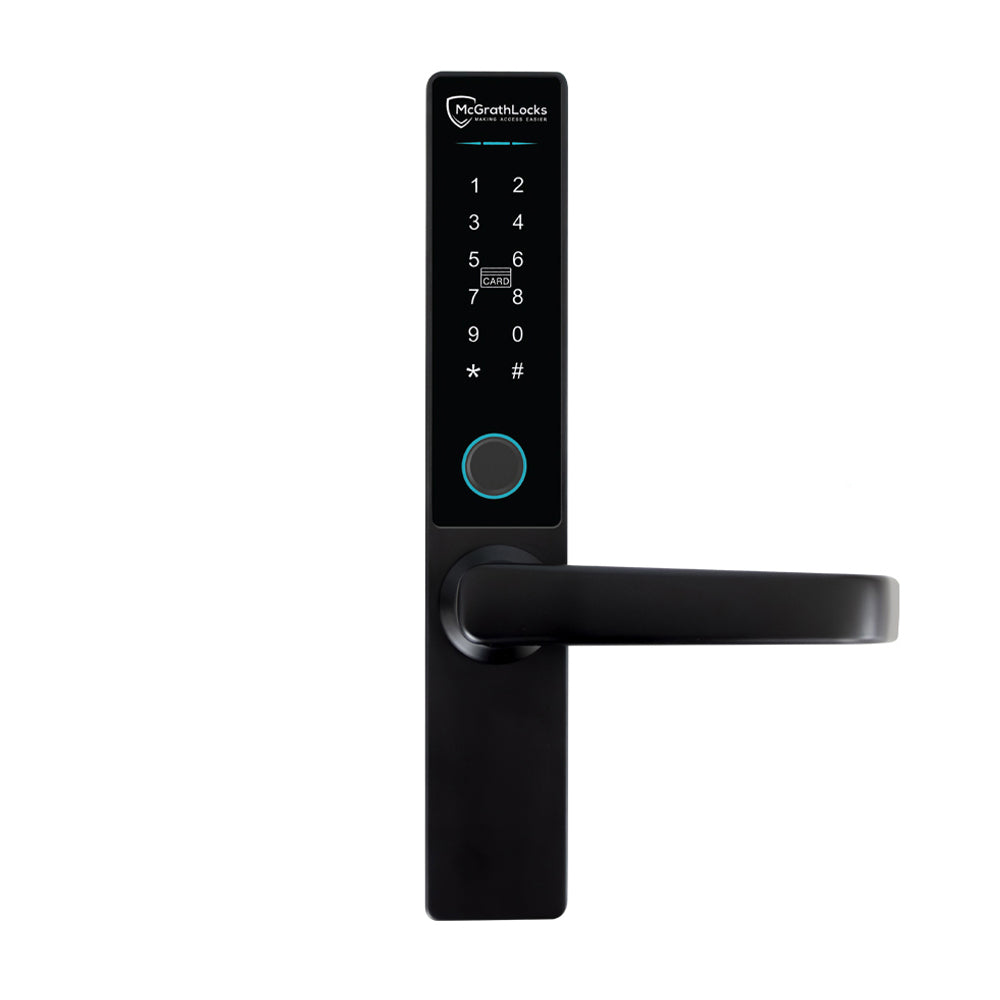

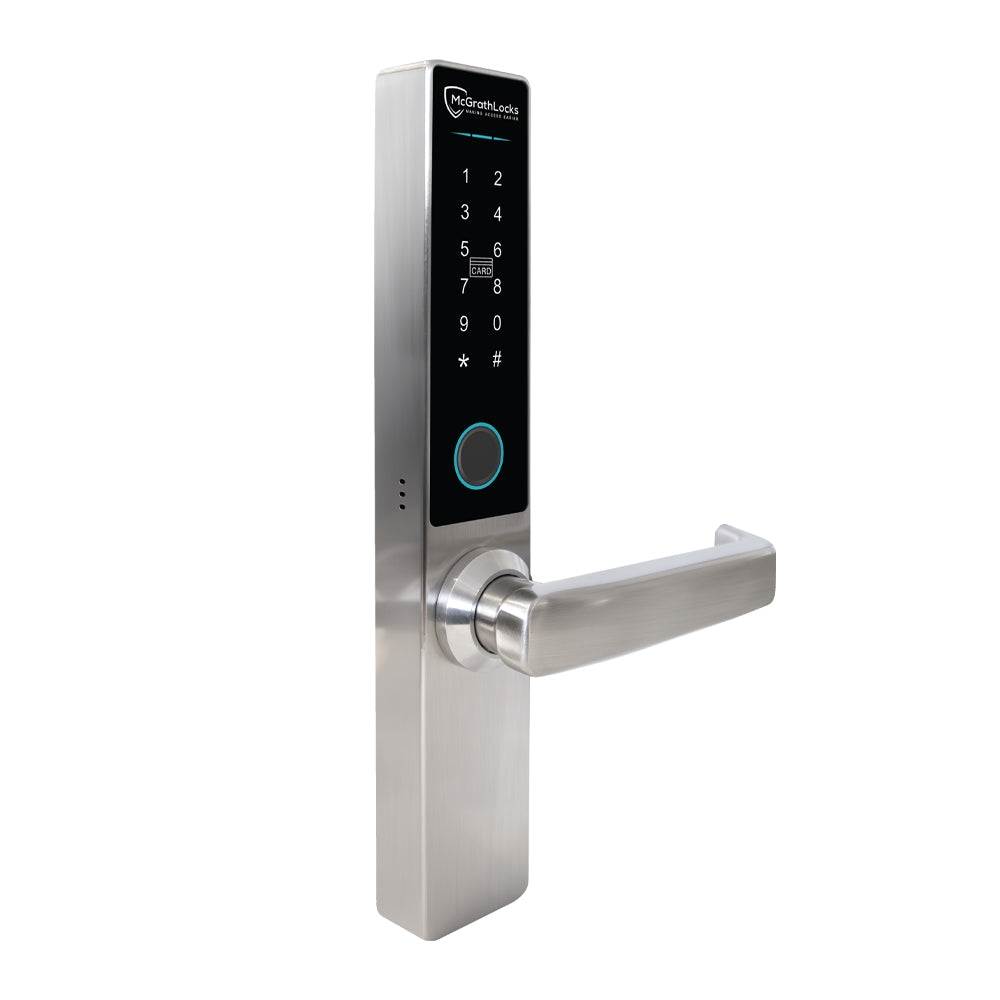

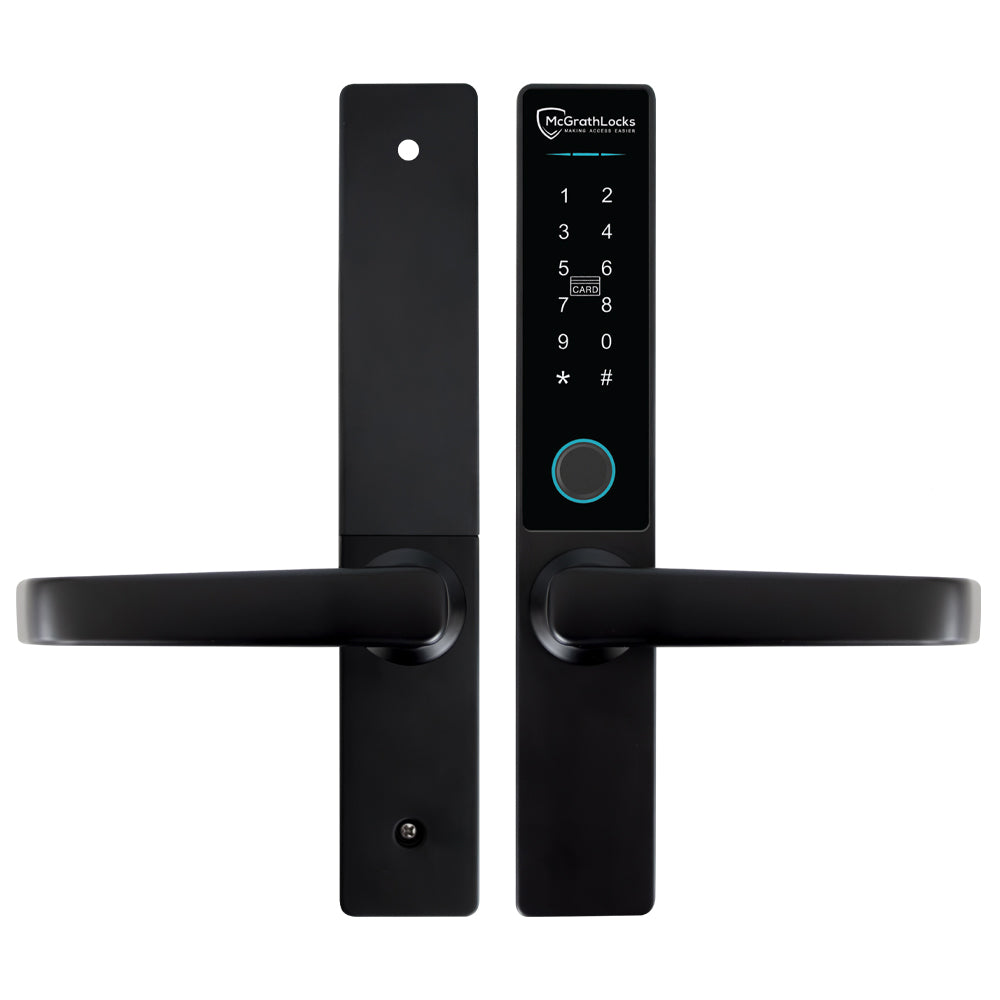

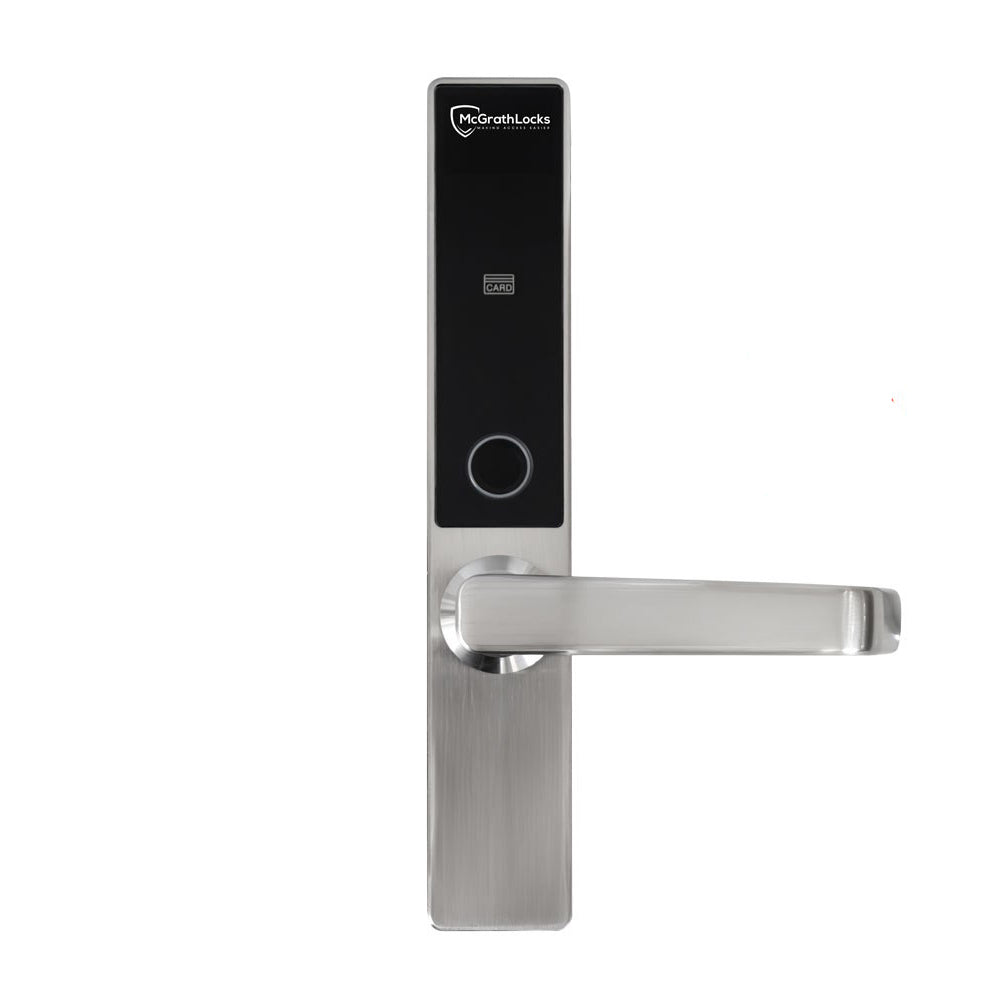

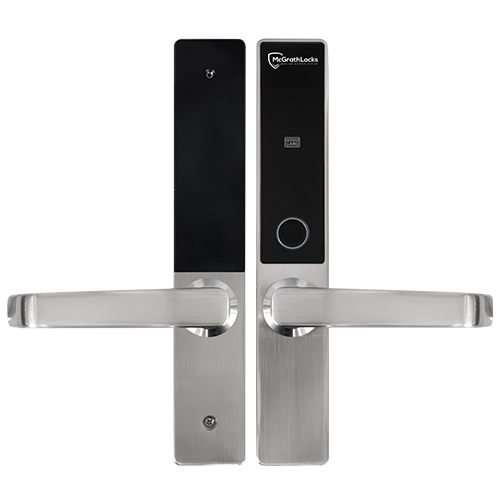

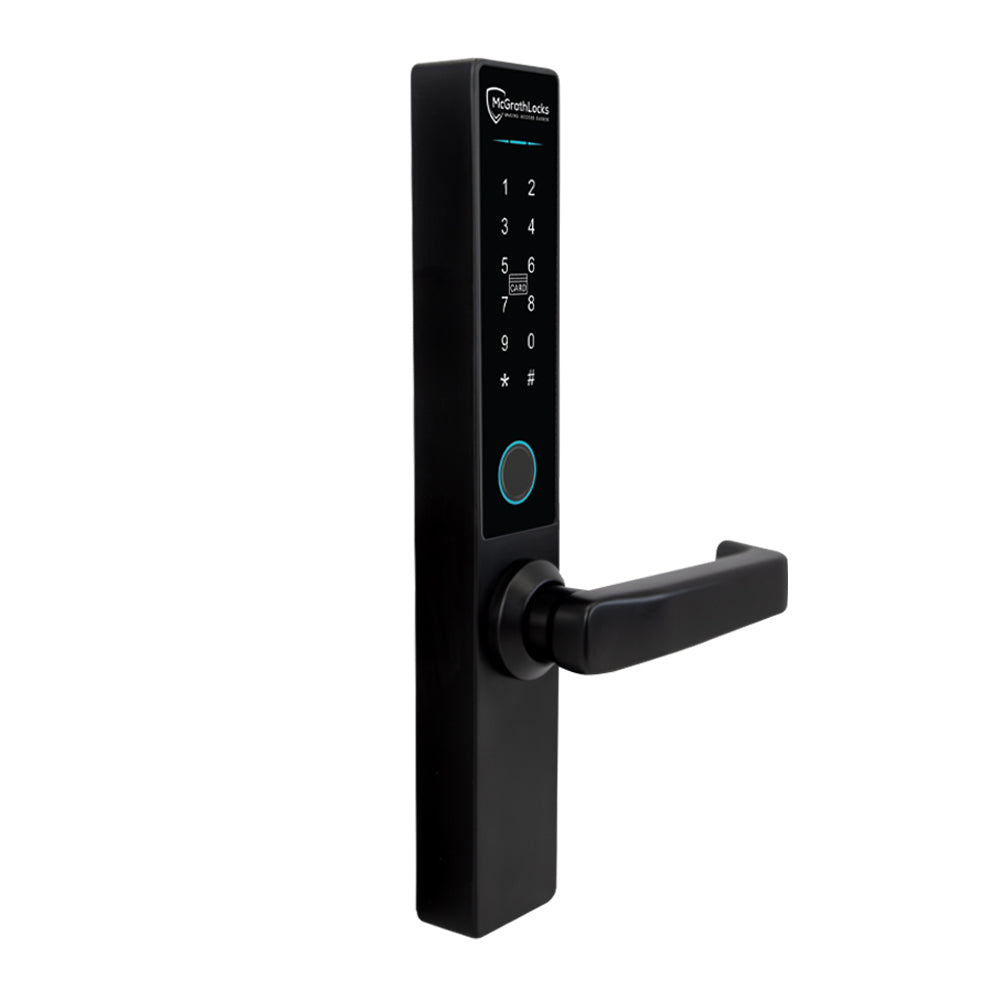

McGrath Hamilton Wi-Fi Smart Lever Lock

$437.75
$437.75

SHIPPING: Orders typically ship in 2-3 business days.

SKU: ML-Hamilton

Overview

The HAMILTON by McGrath Smart Locks is a sleek and stylish lock. It offers keyless entry through PIN codes, RFID access cards or tags, Bluetooth-enabled mobile credentials, or a mechanical key override.

Supplied with an adjustable tubular latch and its narrow design provides many installation options.

The lock is fire-rated for up to 2 hours plus, its ADA-compliant lever makes entry effortless for everyone. A door can be connected to a gateway giving you the ability to unlock your door from anywhere in the world.

Built with an IP66 weather rating, the HAMILTON provides reliable performance in many different environments. Perfect for both residential and commercial properties, it combines security and convenience.

Features:

Types of access

  • Bluetooth (when operated with McGrath Locks App)

  • PIN code (Permanent, timed, one-time, custom, recurring)

  • RFID (Permanent, timed, recurring)

  • mobile credentials (Timed, permanent, one-time, recurring)

  • Mechanical key override

  • Fingerprint

  • Wi-Fi (Remote unlock through McGrath Locks App

  • with installation of additional Gateway accessory

Lock Functions

  • Manage lock functions via McGrath Smart Locks App using Bluetooth or Wi-Fi (with optional gateway).

  • Enrol PIN Codes, RFID, Fingerprints, and send mobile credentials to your family and visitors.

  • Passage Mode can be used to leave your door open when required.

  • A door sensor tells you whether your door has been left open.

  • Anti-peep code function stops unauthorized people from seeing the correct code inputted.

  • Incorrect attempt lockout after 5 wrong attempts for added security.

  • Reset button can be disabled in the App for additional security.

  • Audit trail within the App to see who accessed your door and when.

  • Mechanical key override option for emergency access.

Battery & Power

  • Powered by 4 x AA Alkaline batteries (not included).

  • Low battery alert (visible in App and audible at the lock).

  • USB-C port for emergency power access.

  • Gateway does not come with USB wall plugin adapter

  • Cable included has USB-C to Gateway, USB to power adapter

Security features

  • Supplied with door sensor for optional door

  • monitoring through app

  • Anti-peep PIN code

  • Incorrect attempt lock-out

  • Reset button disable

Built to Last

  • Glass screen for extra durability.

  • IP66 weather rated external side for dust and high-pressure water resistance — suitable for outdoor installations where immersion is not expected.

  • 300,000 Cycle Tested.

Fire-rated

  • Fire-rated for 2 hours on Firecore

  • and E-Core doors.

Maximum compatibility

  • Including dormakaba MS2602 mortice lock.

Water, dust and salt spray resistance

  • IP66 withstands rain and powerful water jets

  • Tempered glass screen

  • 300 hour salt spray tested for black finish

  • 96 hour salt spray tested for satin nickel finish

Battery life

  • 18 months (Based on 10 uses per day)

Product Specs

Hardware

  • Door Thickness: 35mm - 54mm

  • Durabiltiy Test: 300,000 cycles

  • Material: Aluminium alloy, tempered glass screen

  • Spindle Size: 8mm

  • Lock Case Dimensions: 260mm (H) x 45mm (W) x 23mm (D)

Enrolment and Verification

  • Unlocking Method: PIN code, RFID credential (Mifare), Bluetooth, WI-FI (Gateway required), mechanical key

  • Communication Mode: Bluetooth 5.0 BLE and above

Lock Features and Functions

  • Length of password: 4-9 Digits (Minimum of 4 digits available when set via app)

  • PIN code capacity: 250 codes (Some exceptions may apply)

  • RFID capacity: 1000 (Some exceptions may apply)

  • Bluetooth capacity (mobile credentials): Unlimited

  • Lock Type: Tubular latch or Mortise lock

  • Card working Frequency: 13.56MHz

  • Batteries: 4 x AA alkaline batteries (not included)

  • Battery Life: 18 months (Based on 10 uses per day)

  • Battery Voltage: 4.5V - 8V

Operating Environment:

  • Environment: -20C - 70C

  • Humidity: 0% - 80% RH

  • IP Class: IP66 on external lock housing

  • Fire-rated: 2 hour Firecore and E-Core compliance with dormakaba MS2602 mortisce lock and McGrath Locks adjustable 60/70mm tubular latch

Warranty:
24 months (McGrath)

Included:

  • Exterior Lock Assembly

  • Interior Lock Assembly

  • Installation Guide

  • Tubular Latch with Strike Plate

  • Drill Positioning Template

  • 2 Backup Mechanical Keys

  • 2 Access Tags

  • Mounting Screws

  • Mini Security Screwdriver

  • Door Sensor

Finish:
