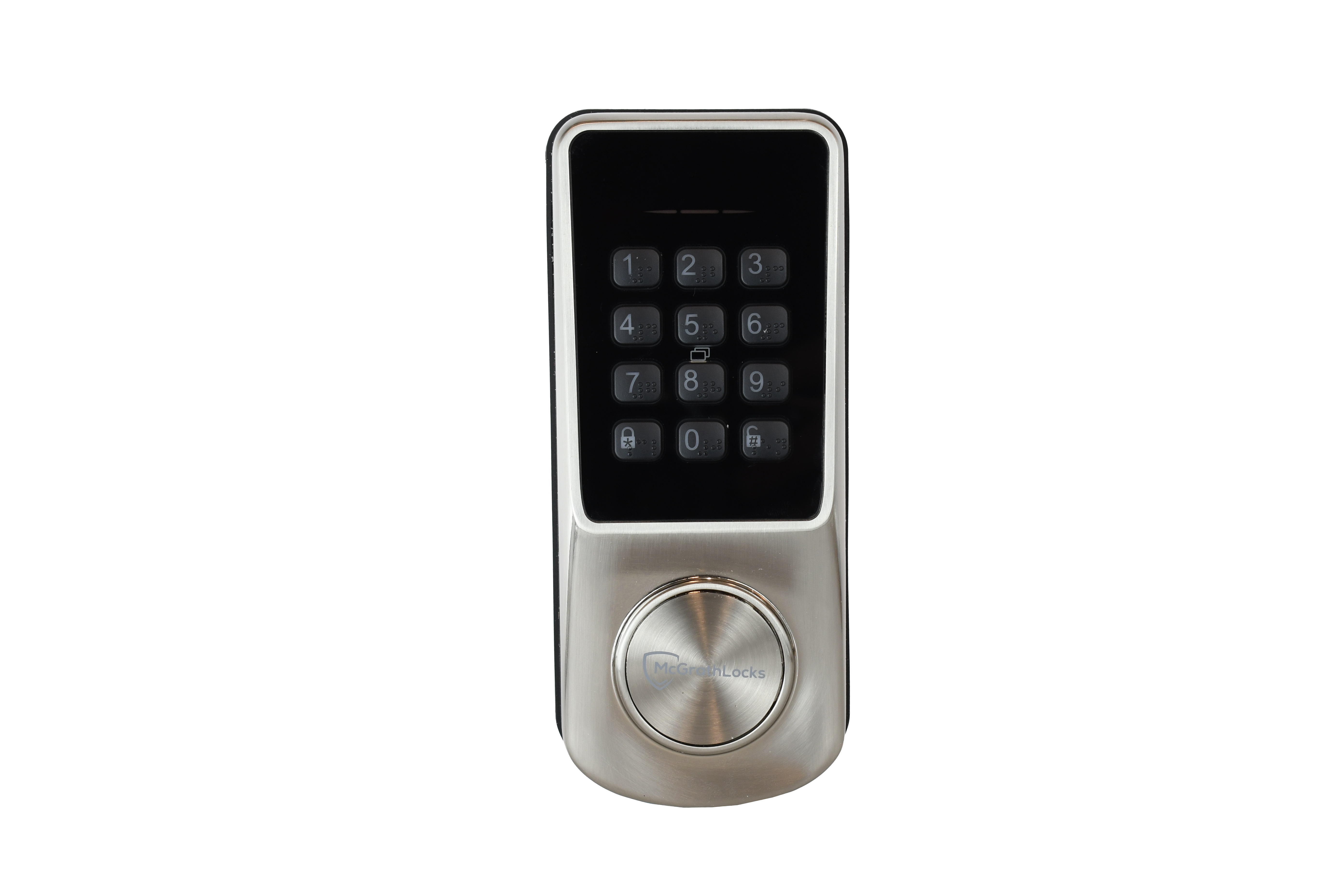

McGrath Locks Ashgrove Smart Deadbolt

$325.49
$325.49

SHIPPING: Orders typically ship in 2-3 business days.

McGrath Locks Smart Deadbolt | Raised Buttons | Adjustable 2 3/8"-2  3/4" Bolt | Fire Rated Material | Grade 1

Why Choose the Ashgrove Lock?

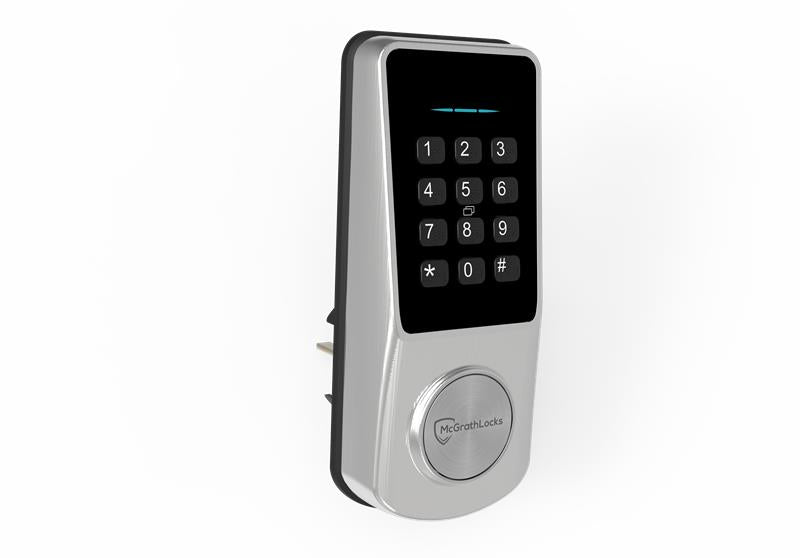

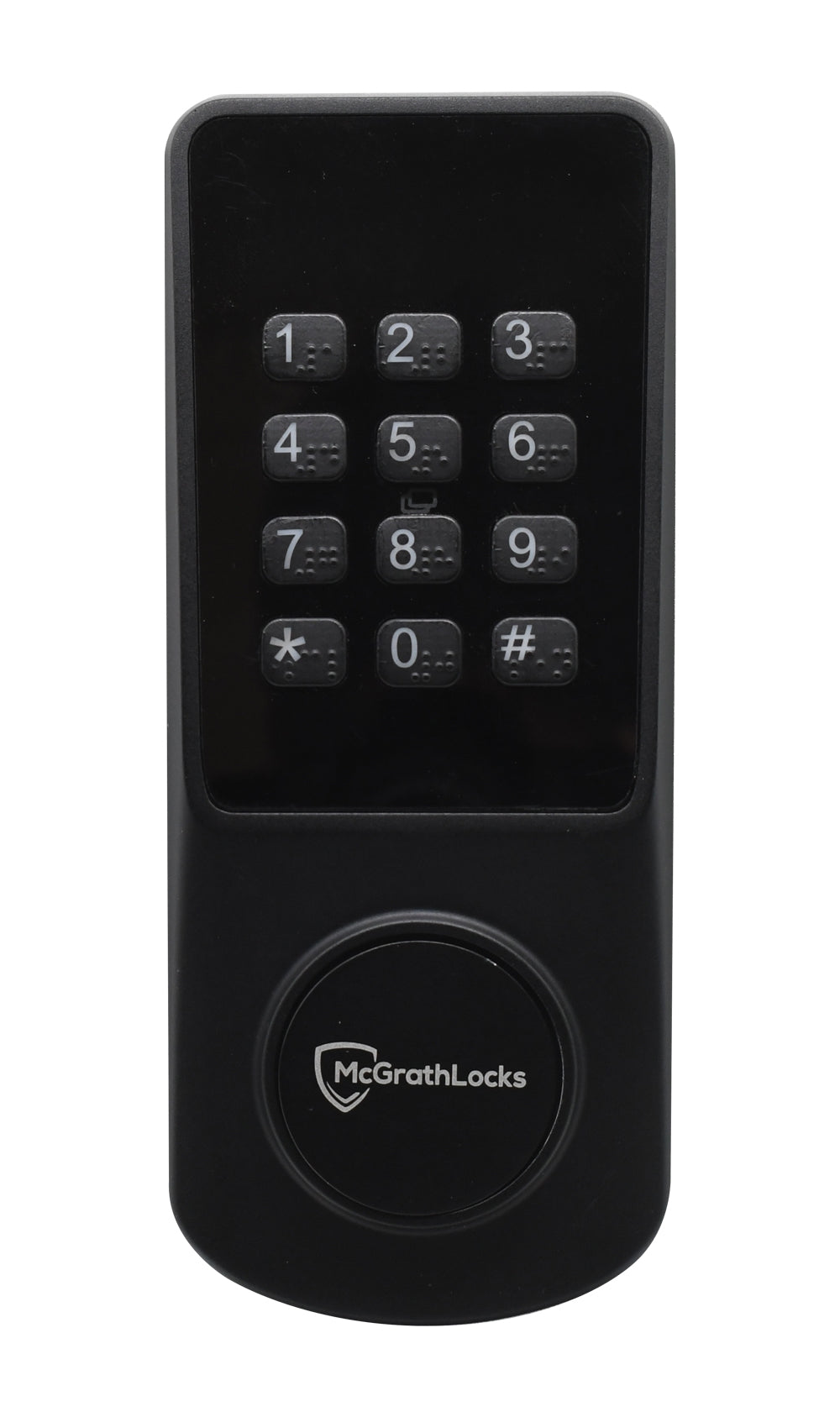

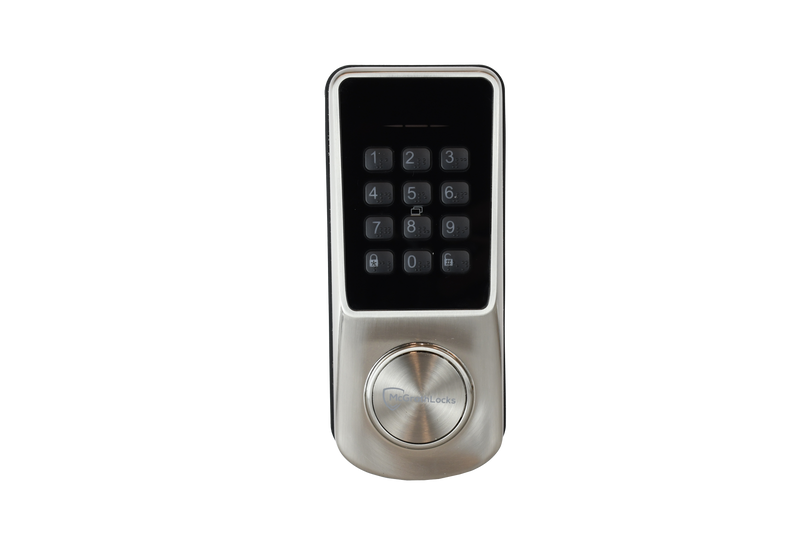

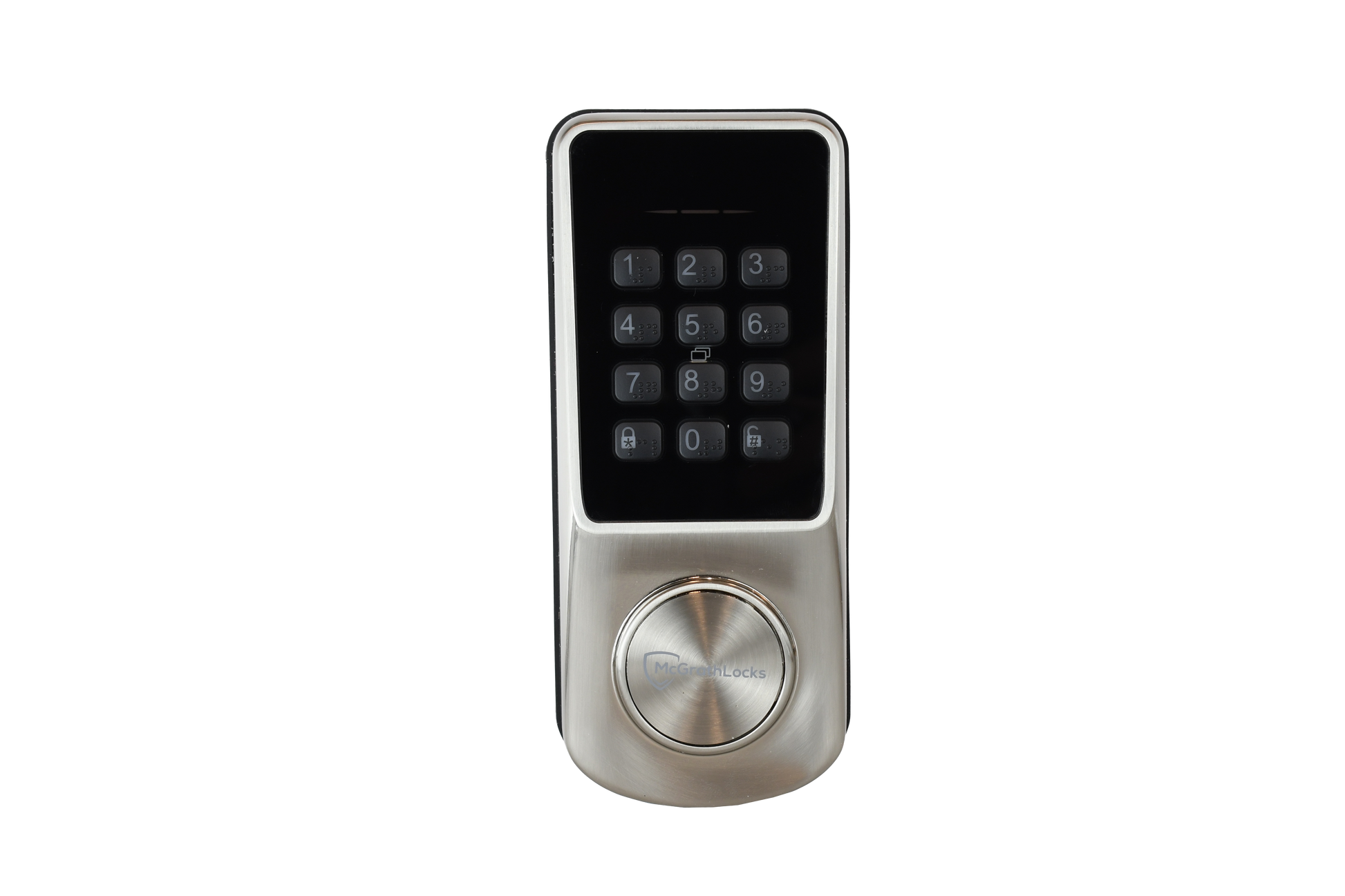

The Ashgrove by McGrath Smart Locks is a sleek 4-in-1 smart deadbolt. Featuring a tempered glass touchscreen with braille raised buttons, it improves usability while delivering secure and convenient access for homes and businesses.

The Ashgrove allows access using PIN codes, RFID cards or tags, Bluetooth mobile credentials, plus a mechanical key override. With an optional Wi-Fi gateway, you can unlock and manage access remotely from anywhere.

Built for demanding applications, the Ashgrove is constructed using fire-resistant materials and includes a stainless steel anti-saw adjustable backset bolt. An IP65 weather rating on the external assembly ensures reliable performance.

Features:

  • Lock functions and access easily managed via the McGrath Smart Locks App using Bluetooth or Wi-Fi (with optional gateway sold separately).

  • Enroll PIN codes, RFID credentials, and send mobile credentials to family and visitors.

  • Passage Mode allows your door to remain open when required.

  • Anti-peep code function prevents unauthorized people from seeing the correct code input.

  • Incorrect attempt lockout for added security.

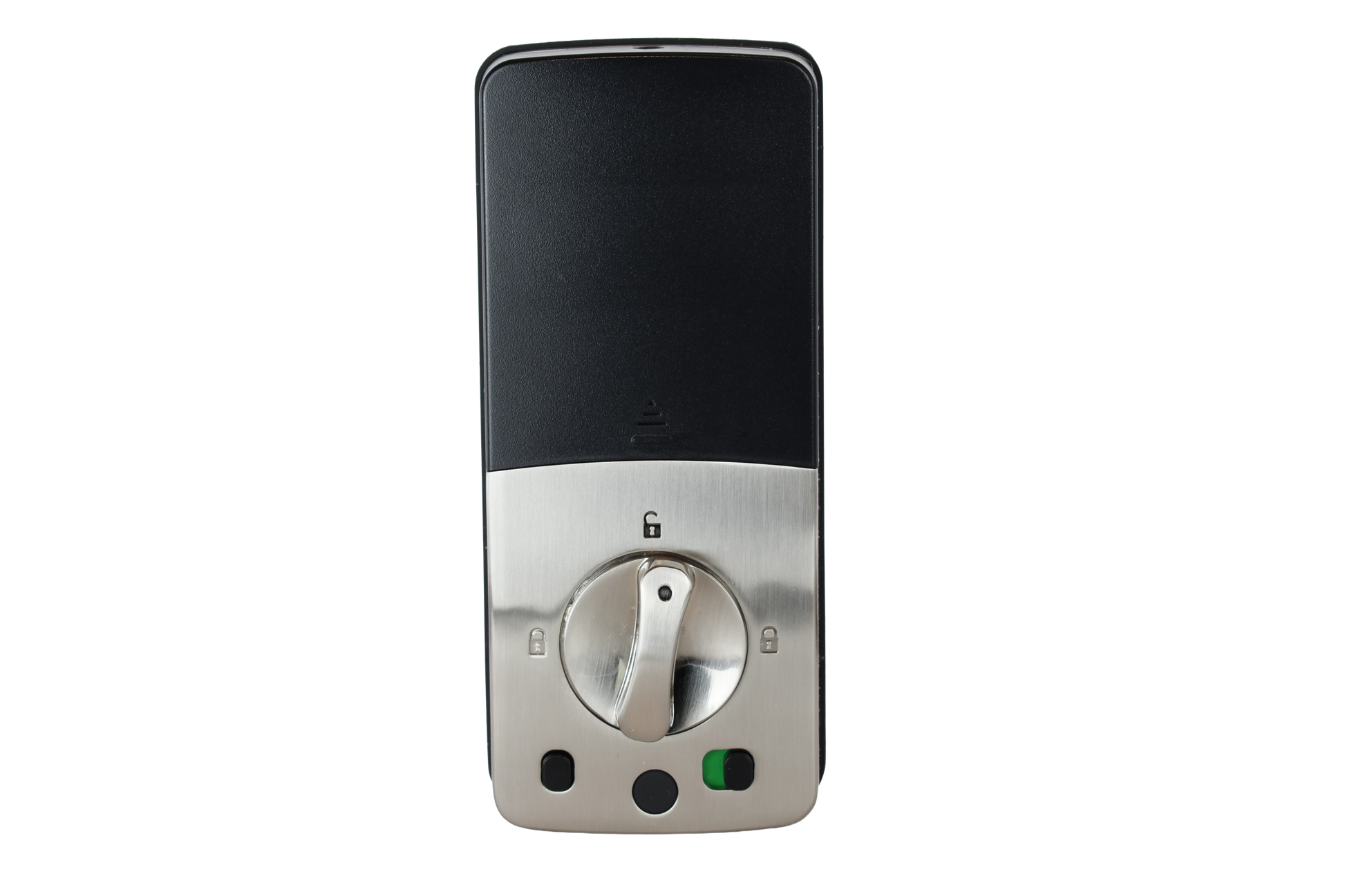

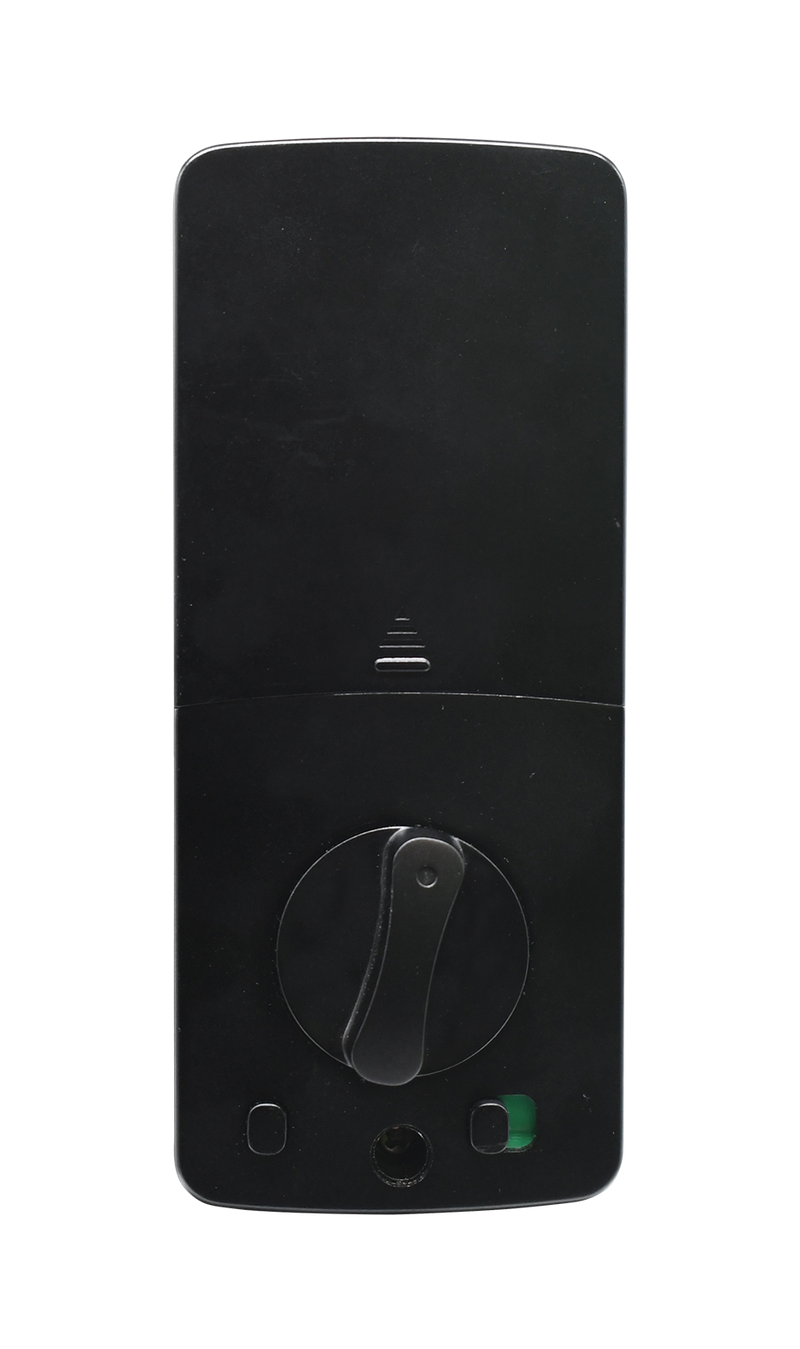

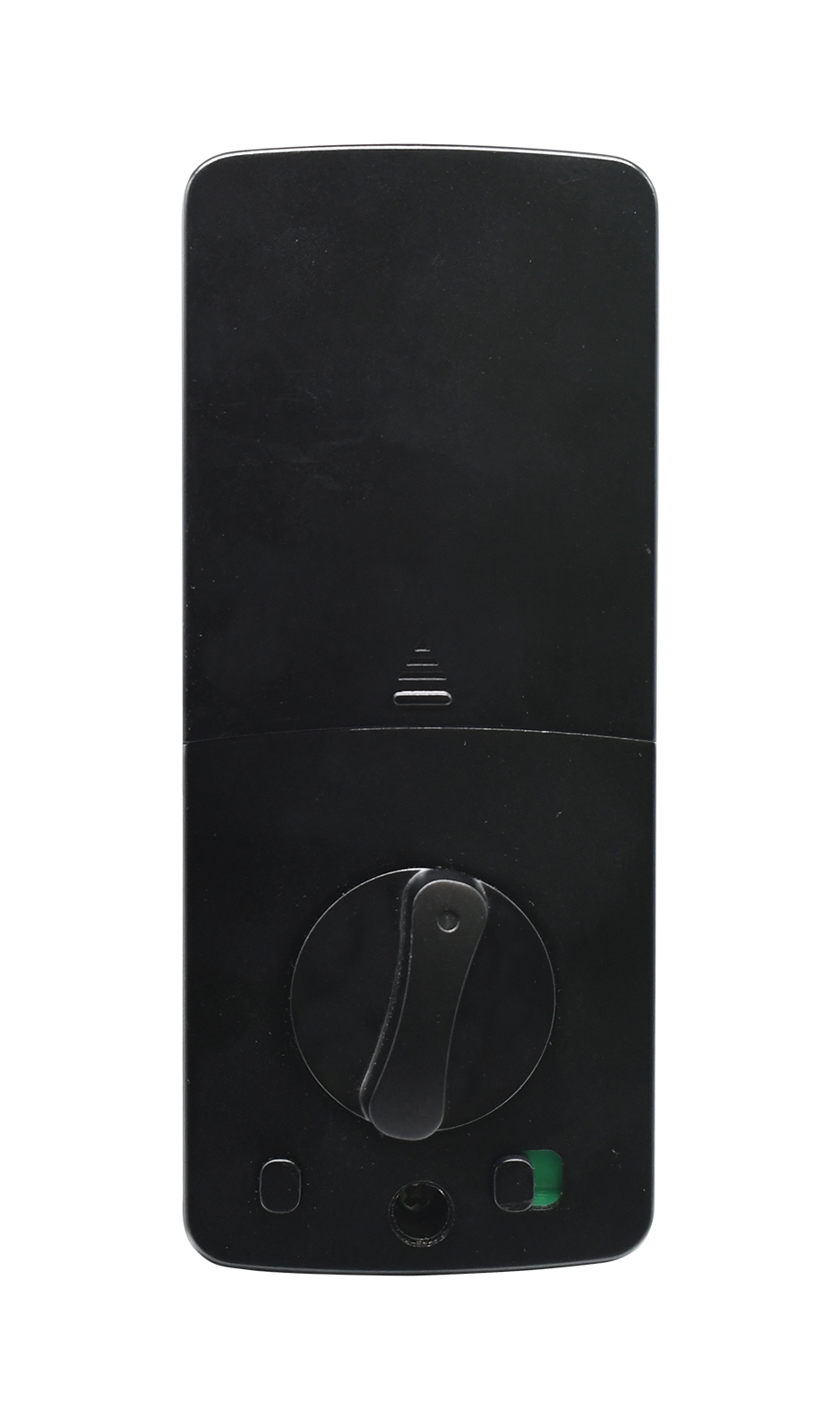

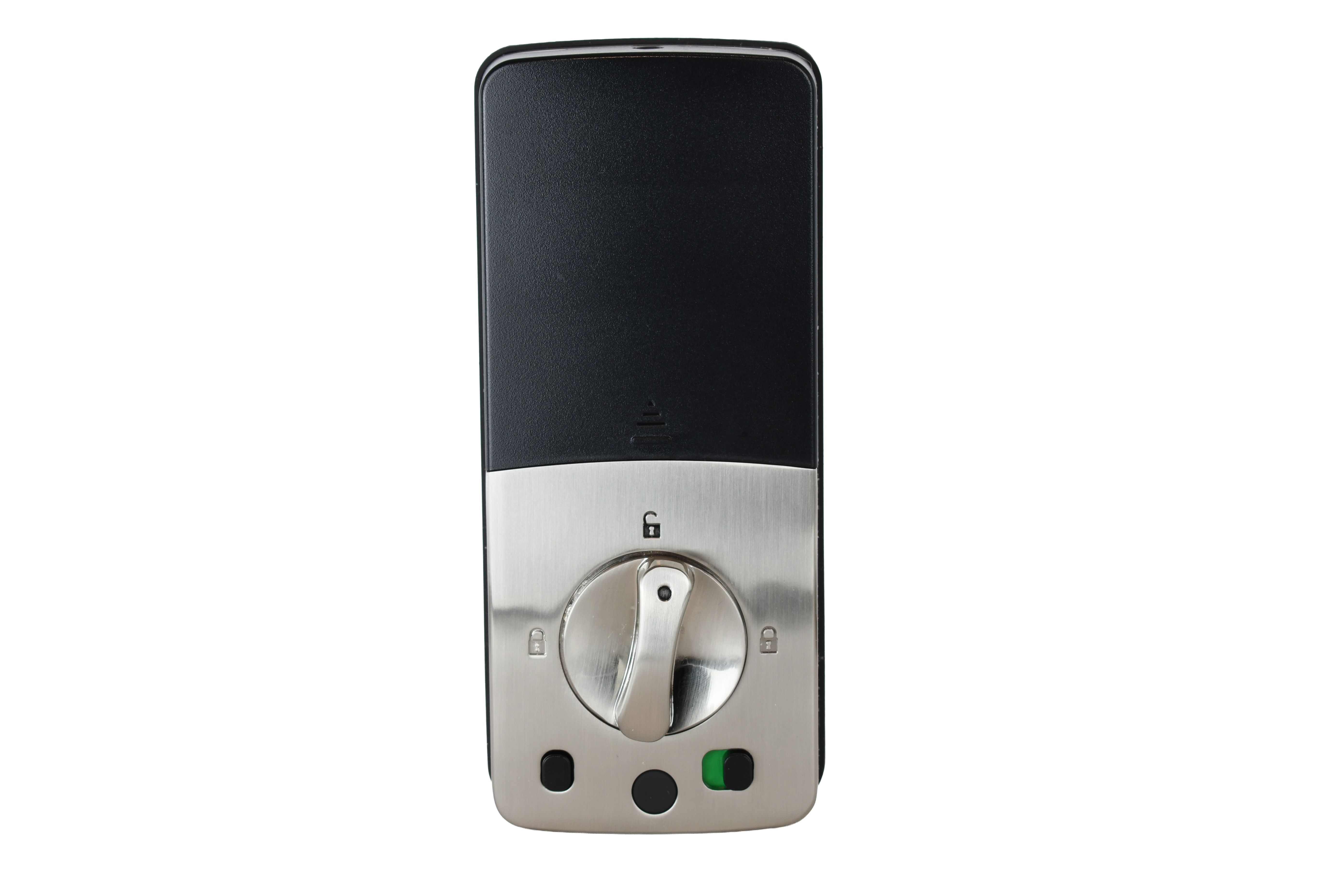

  • Privacy switch on internal lock assembly locks out all access except Administrator and override key.

  • Reset button can be disabled via the App for additional security.

  • Audit trail in the App to see who accessed your door and when.

  • Supplied with a door sensor for optional door open monitoring.

  • Mechanical key override with rekeyable PD cylinder for emergency access.

Battery & Power:

  • Low battery alert (within App and audible at the lock).

  • 4 x AA Alkaline Batteries (not included).

  • USB-C port for emergency power via power bank.

  • Gateway does not come with USB wall plugin adapter

  • Cable included has USB-C to Gateway, USB to power adapter

Built to Last:

  • Tempered glass screen for extra durability.

  • Supplied with an anti-saw 304 stainless steel adjustable backset bolt.

  • 300,000 Cycle Tested.

  • Australian Registered Design # 202513992.

Finish & Lock Dimensions

  • Outside lock case dimensions: 165 (H) x 71 (W) x 28mm (D).

  • Inside lock case dimensions: 166.5 (H) x 73.5 (W) x 38.7mm (D), including turn knob.

  • Finished in Matt Black or Satin Nickel.

Hardware

  • Color: Matte black or satin nickel

  • Type: Timber door, aluminum door

  • Door thickness: 1 3/8” to 2 3/8” (can extend up to 3 15/16” with additional tail bar)

  • Durability test: 300,000 cycles

  • Material: Aluminum alloy, tempered glass screen with braille raised buttons, fire resistant materials

  • Lock Case dimensions: Outside 6 1/2” (H) to 2 13/16” (W) x 1 1/8” (D)

  • Inside 6 9/16” (H) x 2 7/8” (W) x 1 1/2” (D) (including turn knob)

Enrollment and Verification

  • Unlocking method: PIN code, RFID credential (Mifare), Bluetooth, Wi-Fi (Gateway required), mechanical key

  • Support system: Android – 4.3 / IOS 7.0 and above

  • Platforms: TTlock, TTHotel (RemoteLock)

  • App: McGrath Locks

  • Communication mode: Bluetooth 5.0 BLE and above

Lock Features and Functions

  • Length of password: 4-9 digits (Minimum of 4 digits available when set via app)

  • Passage mode: Yes

  • Bluetooth capacity (mobile credentials): Unlimited

  • PIN code capacity: 250 codes (some exceptions may apply)

  • RFID capacity: 1,000 (some exceptions may apply)

  • Emergency opening: Rekeyable mechanical key override, USB-C (Power bank)

  • Batteries: 4 x AA Alkaline batteries (not included)

  • Stand-by power consumption: <66mA

  • Lock type: SS304 adjustable 2 3/8”  - 2 ¾" anti-saw bolt

  • Unlock time: 1.5s

  • Motor working current: Less than 200mA

  • Card working frequency: 13.56MHz
