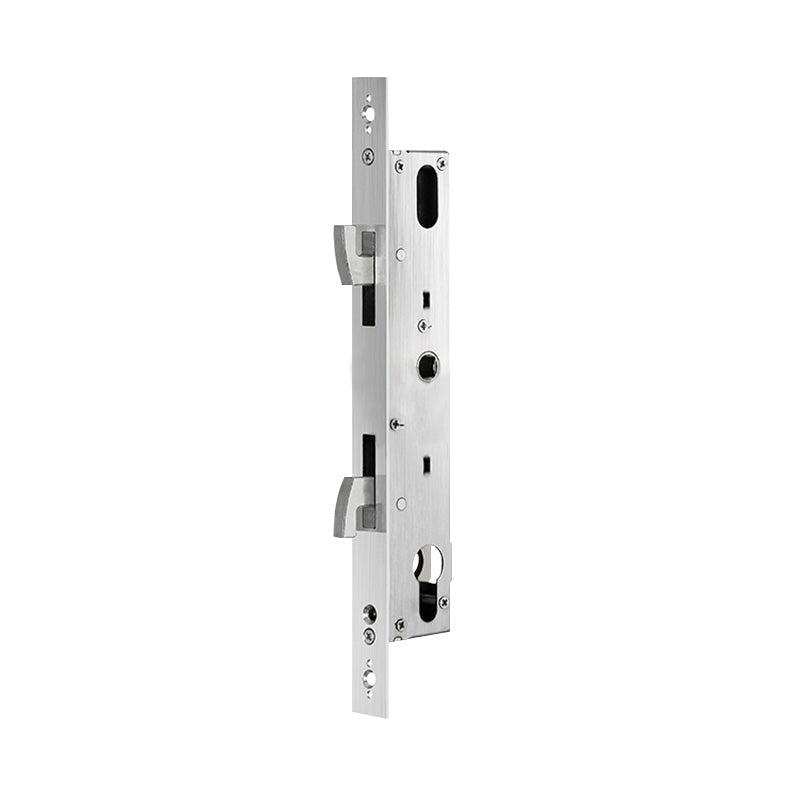

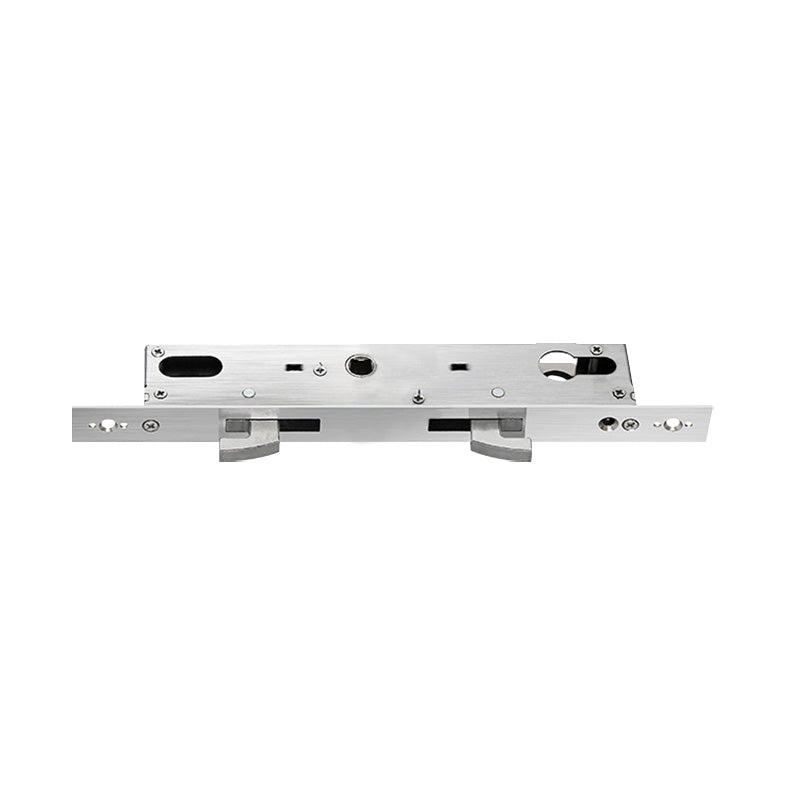

McGrath Locks Euro Hook Mortise (28mm or 35mm Backset)

This McGrath Locks narrow case hook latch is designed to work with sliding or bifold doors. It is compatible with the Slimline ML-A106, ML-Stafford and ML-NX5. Available in two sizes, 28mm & 35mm backset.

The bolts on these mortice locks can be locked by lifting the levers upward or rotating the Hex handle clockwise.

Features:

LatchStyle: Hook bolt

Backset: 28mm, 35mm

Lock center:  85mm

Case size: 208mm x 18mm

Faceplate size: 300mm x 22mm x 3mm

Made from SS304 stainless steel

Finish: Satin Stainless Steel

Cycle tested to 500,000 cycles.

12-month warranty.

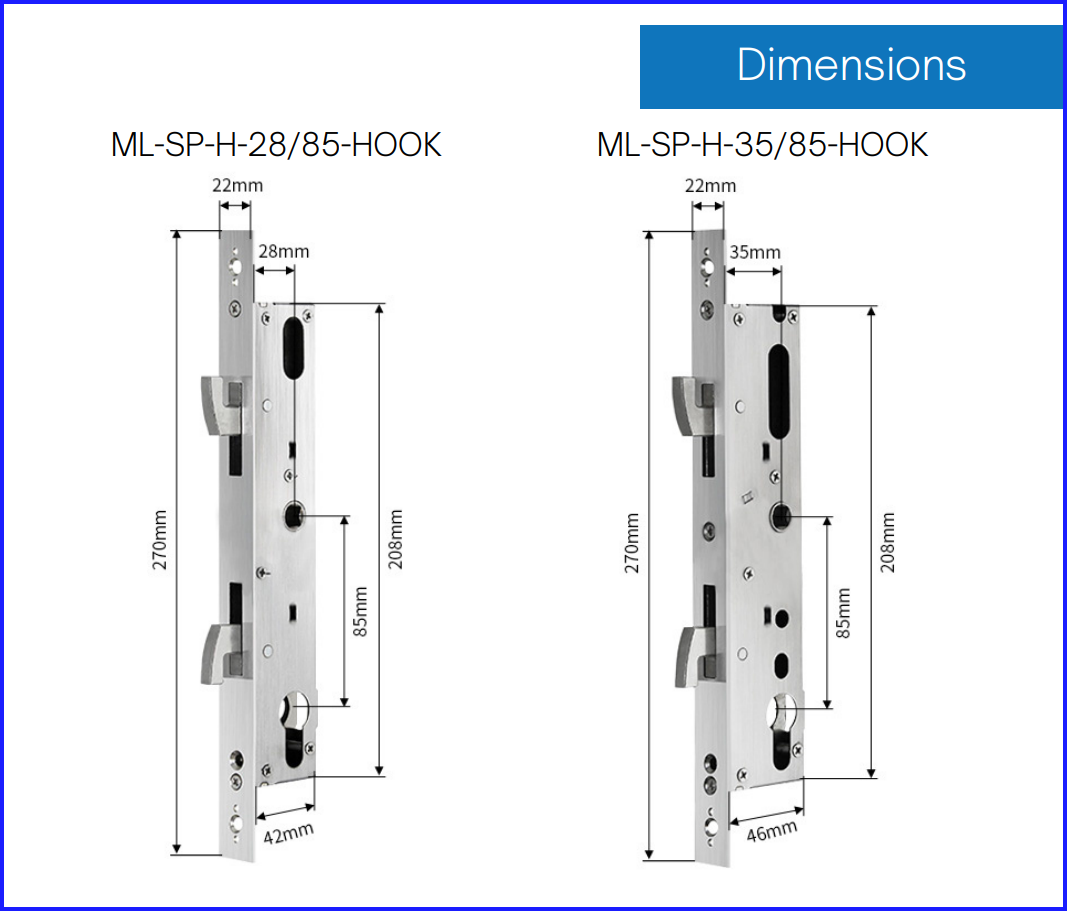

ML-28-85-HOOK Dimensions:

Lock case: 208mm x 42mm

Faceplate: 300mm x 22mm

Lock centres: 85mm Back set: 28mm

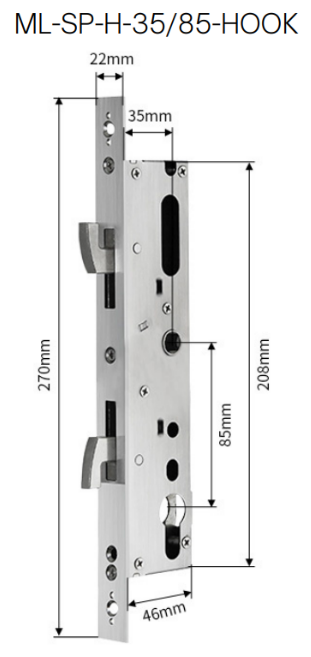

ML-35-85-HOOK Dimensions:

Lock case: 208mm x 46mm

Faceplate: 300mm x 22mm

Lock centres: 85mm

Back set: 35mm

Included:

Striking plate

Strike plate pocket

Fixing screws
