McGrath NX5 Lever Lock
- Regular price
- $420.00
- Sale price
- $420.00
- Regular price
-
Some Dimensions - Exterior 7 5/8(H) x 2 3/4(W) x 2 3/4(D) in. / Interior 7 5/8(H) x 2 3/4(W) x 2 3/4(D) in.
Batteries - 4 AA / Battery Life - 1 year with typical use
Code Capacity - 3500
Code Length - 4-10 digits
Communication Standards - 2.4GHz Wi-Fi (IEEE 802.11 b/g/n)
Event Audit Trail - 1000 stored offline
Door Handing - Right, left, reversible
Functions - Classroom, storehouse
Access Types - PIN, ReadyPIN, Card, Mobile
Scheduling - Lock schedules User schedules, Holiday exceptions
Locking Device - Tubular latch, mortise latch, exit bar
Backset - 2 3/8" (60mm) & 2 3/4" (70mm)
Door Thickness - 1 3/8" -2 3/8" (35mm-60mm)
Ratings - ANSI/BHMA A156.25-2018, Grade 2, ANSI/BHMA A156.2-2017
Warranty - 1 year
Button labelIdeal for Multifamily and Vacation Properties
Sleek and stylish, the NX5 Digital Lock by McGrath Locks is an ANSI mortise lock suitable for the home, office or business. Pair the lock with a TTLock G2 (included) or G3 gateway plus RemoteLock access control software for advanced remote management and helpful efficiencies from 100+ software integration partners.

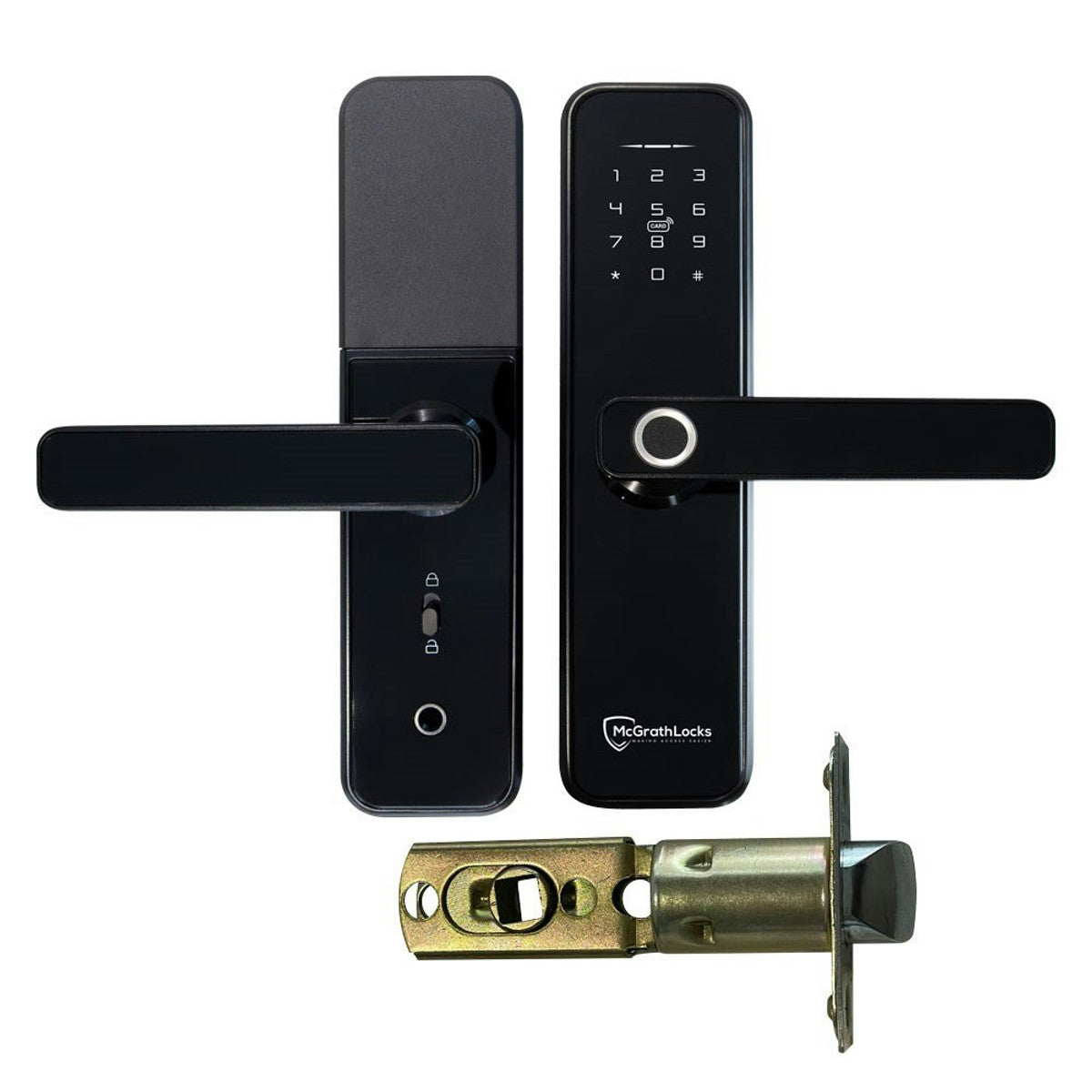

The ML-NX5 comes in a tubular latch and mortise options.
RemoteLock Supported Features:
- RemoteLock unlock: WiFi, PIN & manual key
- User code capacity: 200
- Code Length: 4-8 digit
- Tubular latch: 60mm( 2 ⅜ in)
- Compatible door thickness: 38mm(1 ½ in) -55mm(2 11/64in)
- IP55 rating suitable for indoor & outdoor use
- ANSI mortise: 180mm( 7 3/32 in)
- Door handing: field reversible
- Lock material: aluminum alloy
- Battery: 4 AA alkaline batteries
- Battery life: 12 months (10,000 cycles)
- Micro USB interface design for backup power
- Supports TTLock G2/G3 gateway
- Free TTLock app (smartphone & desktop)
- Integrates with Remotelock software (subscription required)

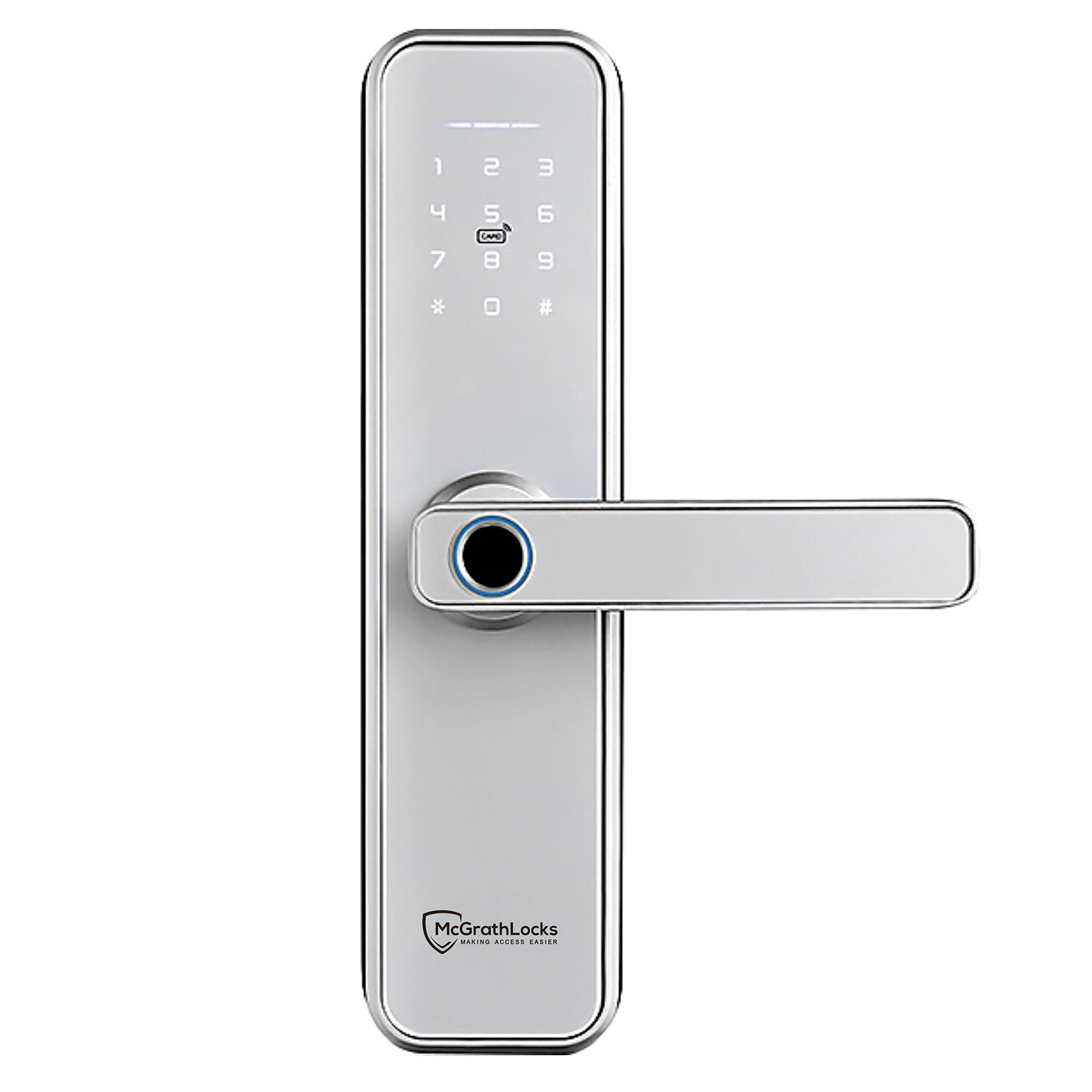

- Available in black or silver finish
- 1-year manufacturer warranty
*Manufacture Supported
TTlock unlock: fingerprint, Bluetooth, card, PIN code and manual key (not all unlock features are available with the RemoteLock software integration)
Included:

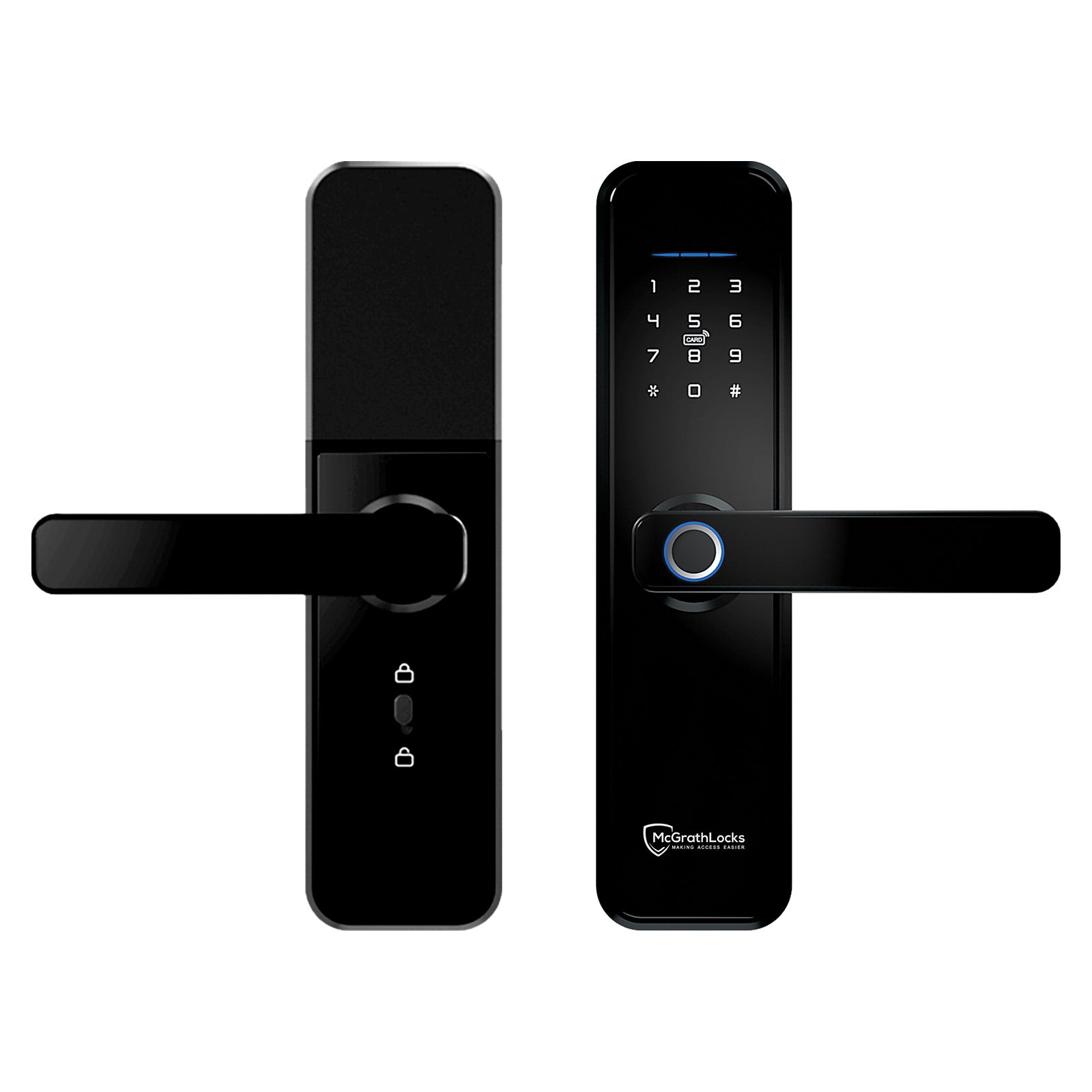

- Interior and exterior lever handles
- Tubular Latch: 2 ⅜ inches
- ANSI mortise
- Backup dey (lock supplied with 2 keys)
- Mounting plate
- Mounting hardware
- TTLock G2 gateway
- 4 X alkaline AA batteries
- User manual
