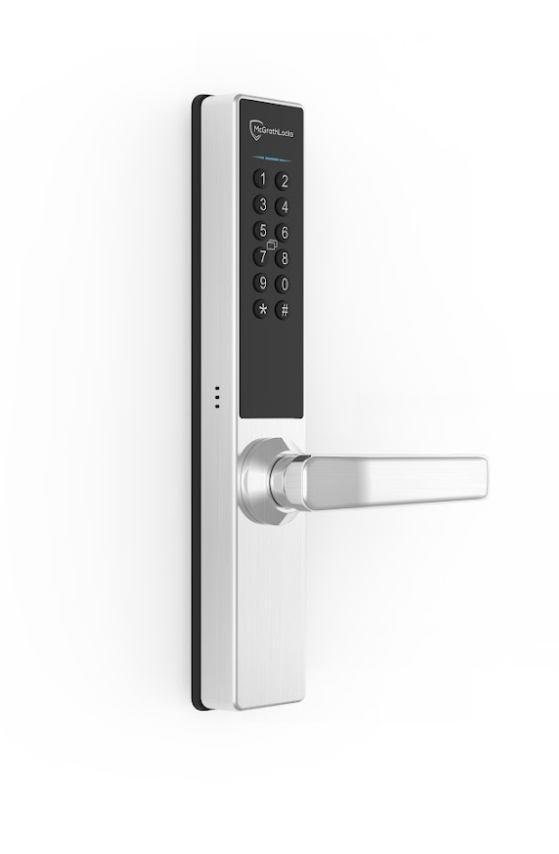

Stafford Wi-Fi Smart Lock by McGrath Locks

5-in-1 Digital Door Lock |  Built for Multifamily, Short-Term Rentals, and Commercial Properties

Why Choose the Stafford Lock?

The Stafford by McGrath Locks combines security, style, and flexibility in one smart package. Designed with fire-tested materials, all-weather protection, and multiple unlock methods, it’s ideal for vacation rentals, multifamily housing, and property managers looking for a scalable access control smart lock.

Its physical push-button keypad ensures instant responsiveness, no wake-up delays like those found in touchscreens, making it ideal for guest-facing or high-turnover environments.

Easy & Flexible Installation

• Compatible with Tubular 60/70mm adjustable(Included), ANSI mortise, or Euro mortise formats



• Fits standard doors: 35mm–54mm (1-3/8” to 2-1/8”)



• Field reversible (left- or right-handed doors)

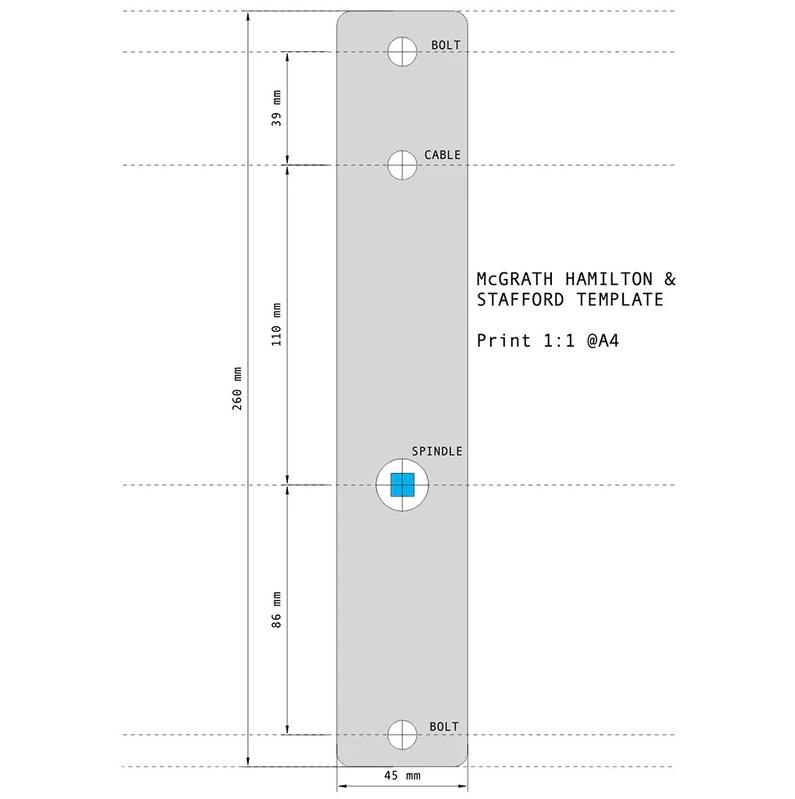

• Body size: 260 × 45 × 23 mm

5 Unlock Options:

RemoteLock Resident APP, Mobile Credential (BLE), PIN Code, ReadyPIN (Offline PIN), and Key Override.

• Remote Access with RemoteLock

• Up to 250 unique user codes (4-9 digits)



• Built-in WiFi – no extra hub required



• Backup Power: USB-C port for emergency power



• Rated IP66 for weatherproof durability



• 20-min Fire-Rated (UL Certified)

Built for Harsh Environments

• IP66-rated weatherproof exterior handle



• Dust-tight and resistant to strong water jets



• FD30 Fire-Rated (EN‑1634 Certified): Withstood 33 minutes at 900°C



• Built with fire-resistant materials and a tempered glass screen

🔋 Powered by 4 AA batteries (12-month average lifespan with Gateway)
🔌 USB-C port for emergency battery backup

📶 Wi-Fi built-in – no gateway required ( G2, G3, G4 or G5 Gateway recommend for extended battery life)

🛜 For optimal performance, a TTLock Gateway is recommended

Important Notes:

• The RemoteLock <> McGrath Locks (TTlock) unlock features include PIN code, RFID Mifare Classic Cards, Mobile App Credential (BLE), Network Unlock, ReadyPIN (Offline Backup Pin), and Key Override.

• Not all RemoteLock’s software partners support Mobile Credential,  MiFare Cards, and ReadyPIN.

What’s in the Box?

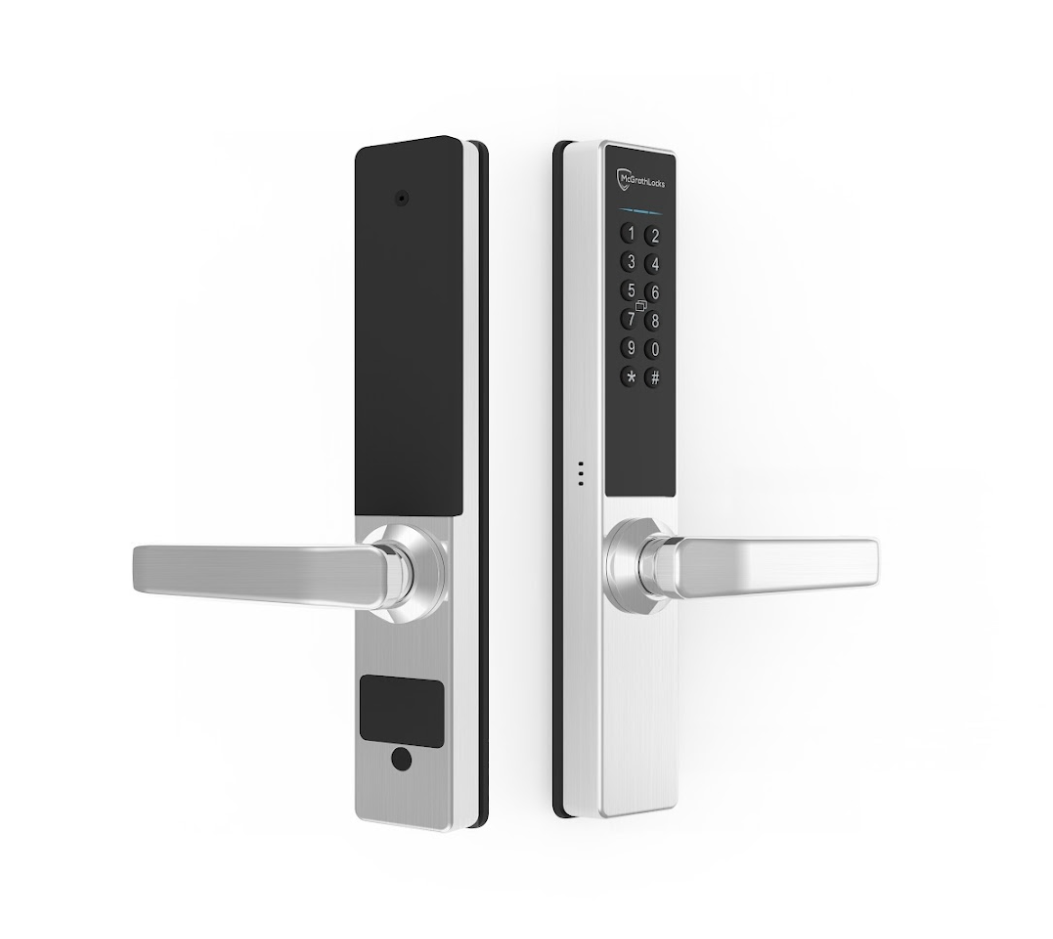

• Interior & exterior lever handles



• Locking mechanism: 60/70mm adjustable



• 2 mechanical backup keys



• Mounting plates & hardware



• Door Position Switch (DPS)



• Printed user manual



• ❌ 4 AA Batteries not included
