RemoteLock

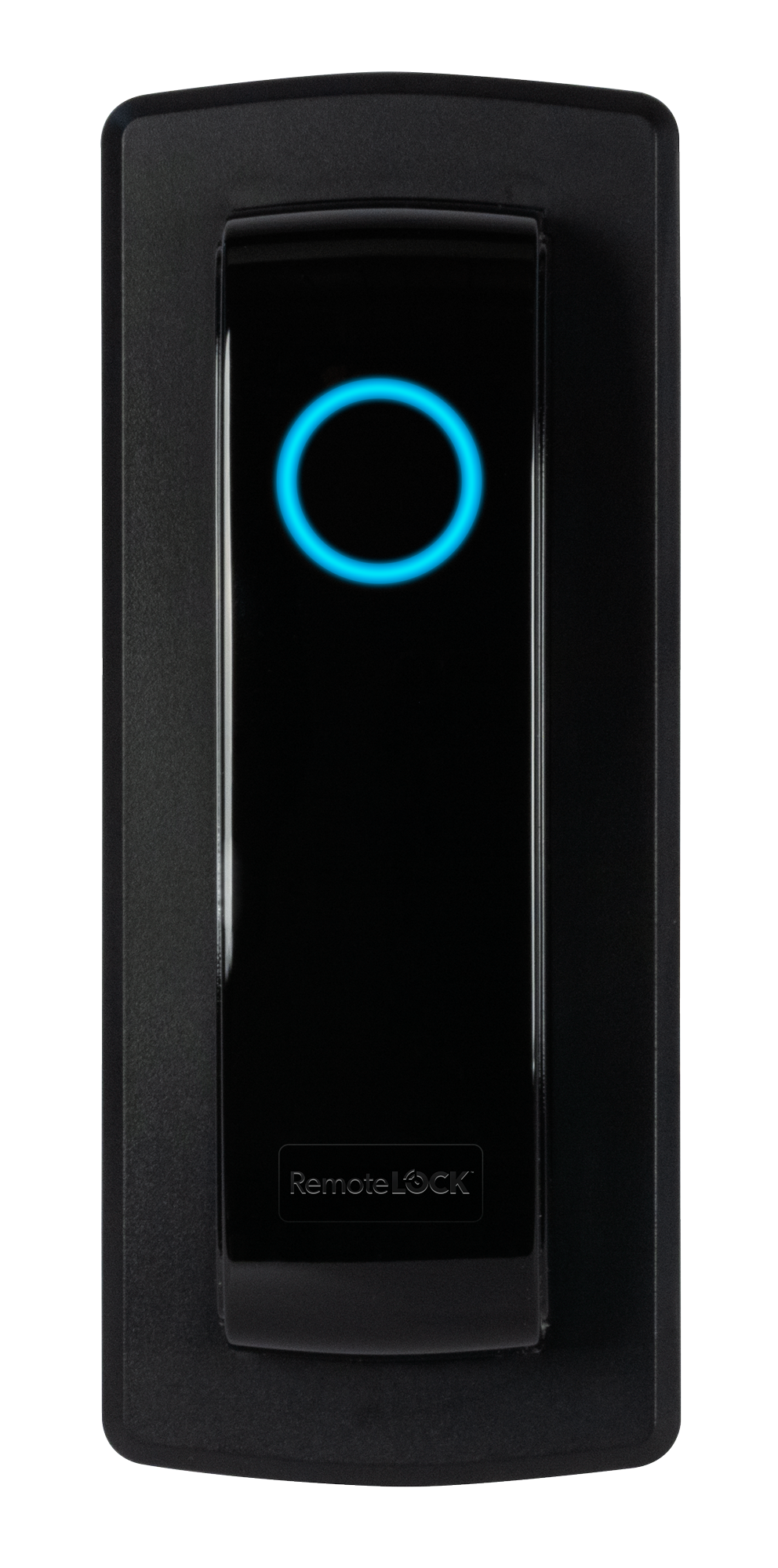

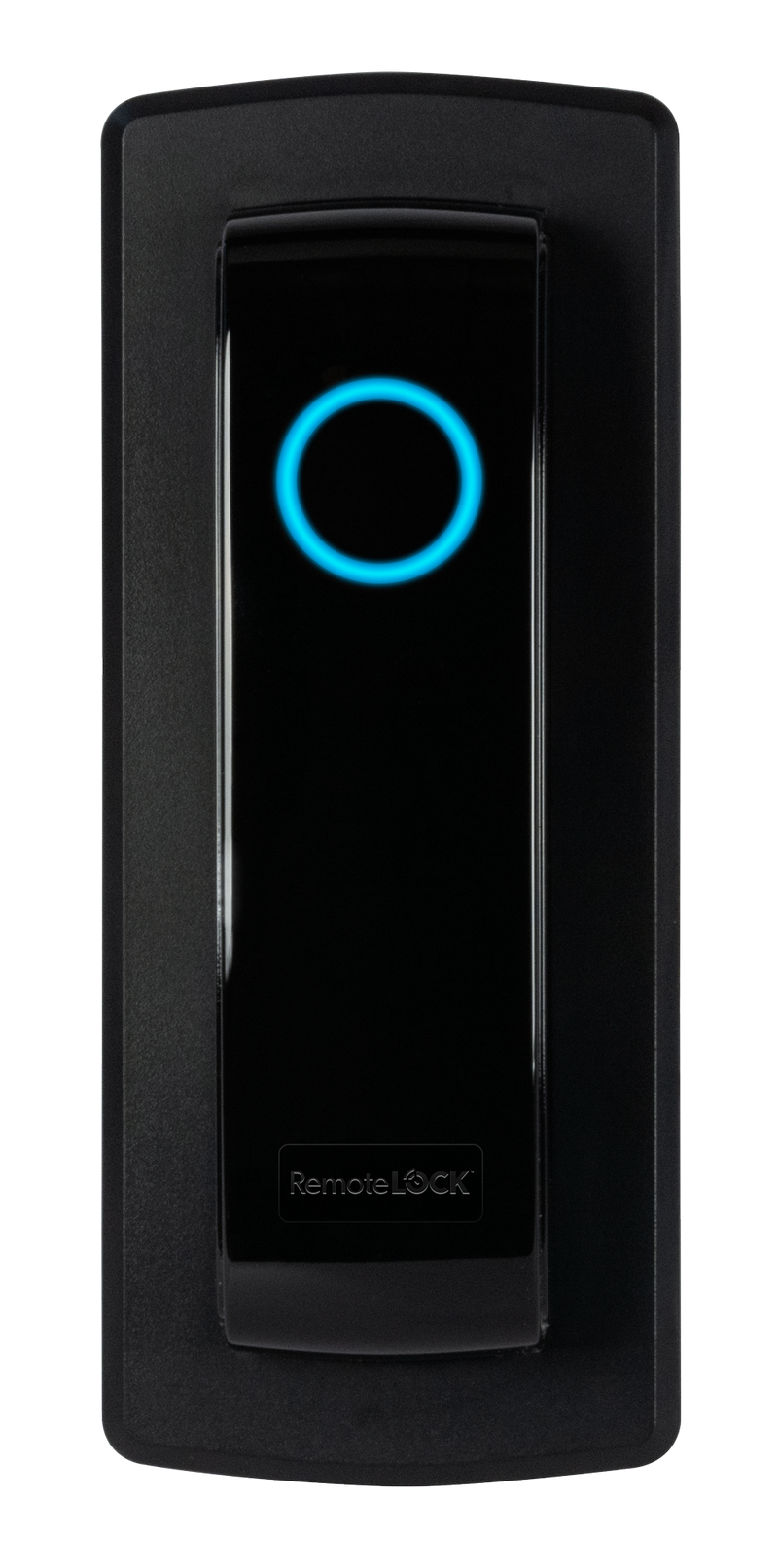

Unikey Reader Keypad for ACS
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Some Dimensions - Exterior 7 5/8(H) x 2 3/4(W) x 2 3/4(D) in. / Interior 7 5/8(H) x 2 3/4(W) x 2 3/4(D) in.
Batteries - 4 AA / Battery Life - 1 year with typical use
Code Capacity - 3500
Code Length - 4-10 digits
Communication Standards - 2.4GHz Wi-Fi (IEEE 802.11 b/g/n)
Event Audit Trail - 1000 stored offline
Door Handing - Right, left, reversible
Functions - Classroom, storehouse
Access Types - PIN, ReadyPIN, Card, Mobile
Scheduling - Lock schedules User schedules, Holiday exceptions
Locking Device - Tubular latch, mortise latch, exit bar
Backset - 2 3/8" (60mm) & 2 3/4" (70mm)
Door Thickness - 1 3/8" -2 3/8" (35mm-60mm)
Ratings - ANSI/BHMA A156.25-2018, Grade 2, ANSI/BHMA A156.2-2017
Warranty - 1 year
Button label
Bluetooth LE compatible
RFID Proximity 26 to 37-bit Wiegand-Based 125 kHz. Pass through of bit length
Capacitive touch technology prevents inadvertent access
Supports emulation conversion technology
FCC, RoHs, UL Standard 294
Waterproof IP65
Wiegand 26 to 37-bit interface/output
Voltage: +5.5 - 16 VDC at the reader. Regulated power supply and 12 VDC at the reader is recommended for best operation.
Current Draw: 100 - 200 mA typical, 225 mA max peak @ 12 VDC low-power mode. Bright light power mode available.
Operating temperature: –40° F to 149° F (–40° C to + 65° C)
RFID Proximity 26 to 37-bit Wiegand-Based 125 kHz. Pass through of bit length
Capacitive touch technology prevents inadvertent access
Supports emulation conversion technology
FCC, RoHs, UL Standard 294
Waterproof IP65
Wiegand 26 to 37-bit interface/output
Voltage: +5.5 - 16 VDC at the reader. Regulated power supply and 12 VDC at the reader is recommended for best operation.
Current Draw: 100 - 200 mA typical, 225 mA max peak @ 12 VDC low-power mode. Bright light power mode available.
Operating temperature: –40° F to 149° F (–40° C to + 65° C)
